●[sumitomo] 040 type DL [waterproofing] series 20 pole F side connector(no terminals) /20P040WP-DL-F-tr [20P040WP-DL-F-tr]

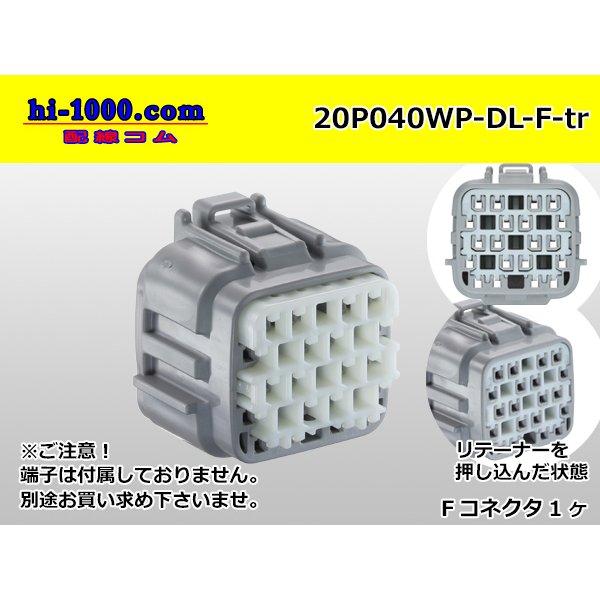

![Photo1: ●[sumitomo] 040 type DL [waterproofing] series 20 pole F side connector(no terminals) /20P040WP-DL-F-tr](https://www.hi-1000ec.com/data/hi-1000/product/20231114_6f67bb.jpg)

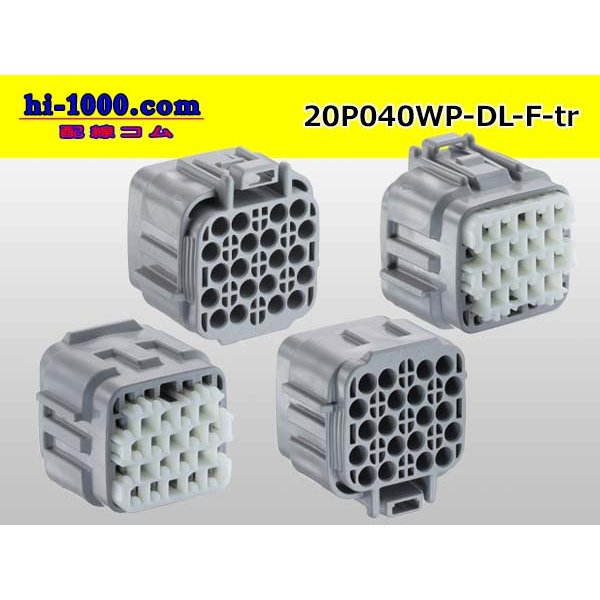

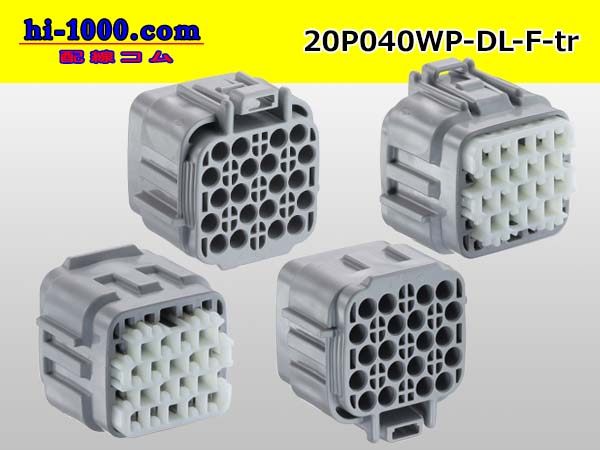

![Photo2: ●[sumitomo] 040 type DL [waterproofing] series 20 pole F side connector(no terminals) /20P040WP-DL-F-tr](https://www.hi-1000ec.com/data/hi-1000/product/20231114_cb4b8e.jpg)

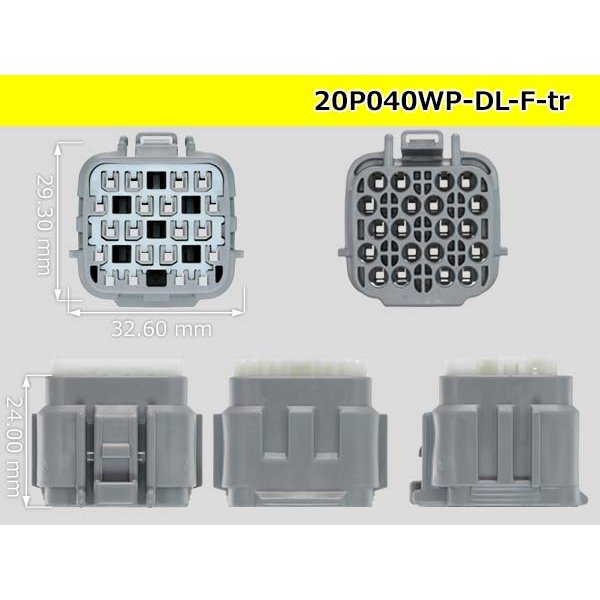

![Photo3: ●[sumitomo] 040 type DL [waterproofing] series 20 pole F side connector(no terminals) /20P040WP-DL-F-tr](https://www.hi-1000ec.com/data/hi-1000/product/20231114_190268.jpg)
●[sumitomo] 040 type DL [waterproofing] series 20 pole F side connector(no terminals) /20P040WP-DL-F-tr
[20P040WP-DL-F-tr]
Price: US$9.45
Weight: 15g
Stock:122
This product is F side connector.
Please buy the F terminal, the wire seal and dummy plug are separately.
In addition, the M side connector is not included, too.
please buy it separately.
Brand： Sumitomo Wiring Systems
Series：DL waterproofing series
Standard size：040
Hue：Gray
Gender：Female
Number of Positions：Waterproofing 20 Position
Terminal / Wire seal：selling separately
Corresponding terminals separately prepare it as follows.
Please find necessary amount.
In addition, it is available as a spare for the repair.
◆M side connector（No terminals)
"20P040WP-DL-M-tr"
■F terminal（0.3-0.5㎟）+ wire seal（S size）
"F040WP-DL-SL-0305-SS"
for AVSS0.3mm2
■F terminal（0.3-0.5㎟） + wire seal（M size）
"F040WP-DL-SL-0305-SM"
for AVS0.5mm2
■F terminal（0.75-1.25㎟）+ wire seal（M size）
"F040WP-DL-SL-75125-MM"
for AVS0.75mm2
■F terminal individually
"F040WP-DL-SL-0305-wr"
for 0.3-0.5㎟
■F terminal individually
"F040WP-DL-SL-75125-wr"
for 0.75-1.25㎟
■Wire seal（S size）[Reddish Brown]
"WS7165-0547DL-SL-BNG"
■Wire seal（M size）[Blue]
"WS7165-0548DL-SL-BL"
■Dummy plug
"DP7165-0432-BK"
Please use without terminals.
Please buy the F terminal, the wire seal and dummy plug are separately.
In addition, the M side connector is not included, too.
please buy it separately.
Brand： Sumitomo Wiring Systems
Series：DL waterproofing series
Standard size：040
Hue：Gray
Gender：Female
Number of Positions：Waterproofing 20 Position
Terminal / Wire seal：selling separately
Corresponding terminals separately prepare it as follows.
Please find necessary amount.
In addition, it is available as a spare for the repair.
◆M side connector（No terminals)
"20P040WP-DL-M-tr"
■F terminal（0.3-0.5㎟）+ wire seal（S size）
"F040WP-DL-SL-0305-SS"
for AVSS0.3mm2
■F terminal（0.3-0.5㎟） + wire seal（M size）
"F040WP-DL-SL-0305-SM"
for AVS0.5mm2
■F terminal（0.75-1.25㎟）+ wire seal（M size）
"F040WP-DL-SL-75125-MM"
for AVS0.75mm2
■F terminal individually
"F040WP-DL-SL-0305-wr"
for 0.3-0.5㎟
■F terminal individually
"F040WP-DL-SL-75125-wr"
for 0.75-1.25㎟
■Wire seal（S size）[Reddish Brown]
"WS7165-0547DL-SL-BNG"
■Wire seal（M size）[Blue]
"WS7165-0548DL-SL-BL"
■Dummy plug
"DP7165-0432-BK"
Please use without terminals.
●[sumitomo] 040 type DL [waterproofing] series 20 pole F side connector(no terminals) /20P040WP-DL-F-tr
[20P040WP-DL-F-tr]
Price: US$9.45
Weight: 15g
Stock:122
