●[sumitomo] 040 type DL [waterproofing] series 20 pole M side connector(no terminals) /20P040WP-DL-M-tr [20P040WP-DL-M-tr]

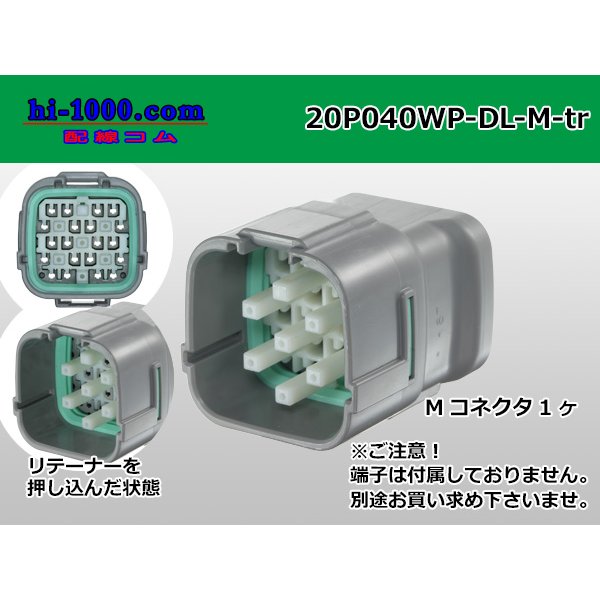

![Photo1: ●[sumitomo] 040 type DL [waterproofing] series 20 pole M side connector(no terminals) /20P040WP-DL-M-tr](https://www.hi-1000ec.com/data/hi-1000/product/20231114_fb565f.jpg)

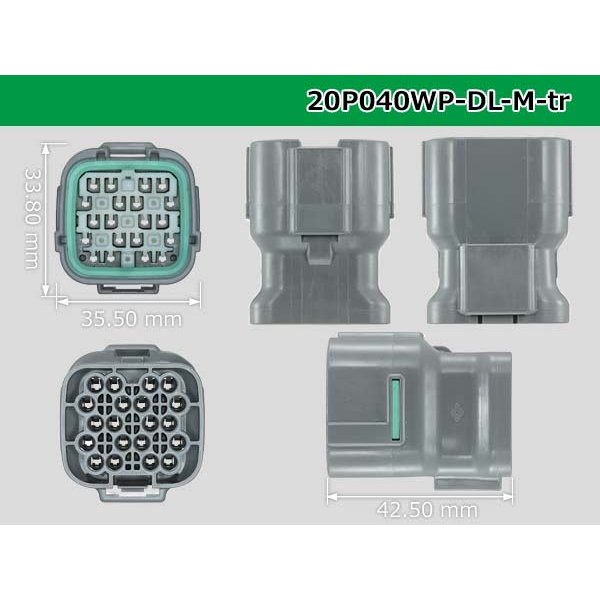

![Photo2: ●[sumitomo] 040 type DL [waterproofing] series 20 pole M side connector(no terminals) /20P040WP-DL-M-tr](https://www.hi-1000ec.com/data/hi-1000/product/20231114_5fc19d.jpg)

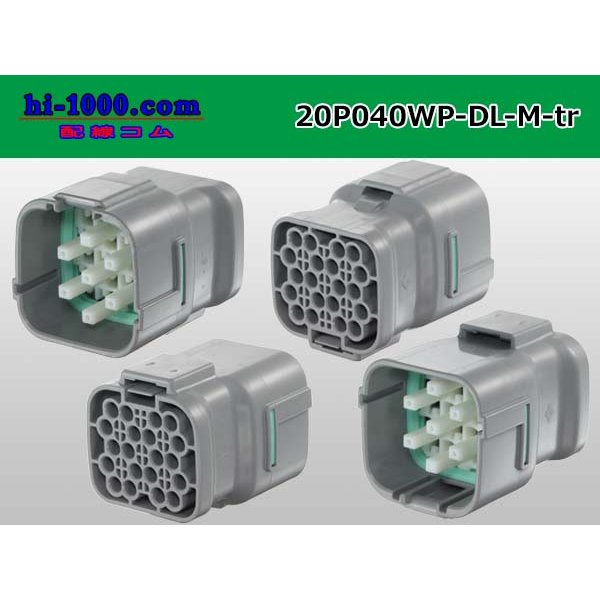

![Photo3: ●[sumitomo] 040 type DL [waterproofing] series 20 pole M side connector(no terminals) /20P040WP-DL-M-tr](https://www.hi-1000ec.com/data/hi-1000/product/20231114_cc2a05.jpg)
●[sumitomo] 040 type DL [waterproofing] series 20 pole M side connector(no terminals) /20P040WP-DL-M-tr
[20P040WP-DL-M-tr]
Price: US$11.55
Weight: 15g
Stock:66
This product is M side connector.
Please buy the M terminal, the wire seal and dummy plug are separately.
In addition, the F side connector is not included, too.
please buy it separately.
Brand： Sumitomo Wiring Systems
Series：DL waterproofing series
Standard size：040
Hue：Gray
Gender：Male
Number of Positions：Waterproofing 20 Position
Terminal / Wire seal：selling separately
Corresponding terminals separately prepare it as follows.
Please find necessary amount.
In addition, it is available as a spare for the repair.
◆F side connector（No terminals)
"20P040WP-DL-F-tr"
■M terminal（0.3-0.5㎟）+ wire seal（S size）
"M040WP-DL-SL-0305-SS"
for AVSS0.3mm2
■M terminal（0.3-0.5㎟） + wire seal（M size）
"M040WP-DL-SL-0305-SM"
for AVS0.5mm2
■M terminal（0.75-1.25㎟）+ wire seal（M size）
"M040WP-DL-SL-75125-MM"
for AVS0.75mm2
■M terminal individually
"M040WP-DL-SL-0305-wr"
for 0.3-0.5㎟
■M terminal individually
"M040WP-DL-SL-75125-wr"
for 0.75-1.25㎟
■Wire seal（S size）[Reddish Brown]
"WS7165-0547DL-SL-BNG"
■Wire seal（M size）[Blue]
"WS7165-0548DL-SL-BL"
■Dummy plug
"DP7165-0432-BK"
Please use without terminals.
Please buy the M terminal, the wire seal and dummy plug are separately.
In addition, the F side connector is not included, too.
please buy it separately.
Brand： Sumitomo Wiring Systems
Series：DL waterproofing series
Standard size：040
Hue：Gray
Gender：Male
Number of Positions：Waterproofing 20 Position
Terminal / Wire seal：selling separately
Corresponding terminals separately prepare it as follows.
Please find necessary amount.
In addition, it is available as a spare for the repair.
◆F side connector（No terminals)
"20P040WP-DL-F-tr"
■M terminal（0.3-0.5㎟）+ wire seal（S size）
"M040WP-DL-SL-0305-SS"
for AVSS0.3mm2
■M terminal（0.3-0.5㎟） + wire seal（M size）
"M040WP-DL-SL-0305-SM"
for AVS0.5mm2
■M terminal（0.75-1.25㎟）+ wire seal（M size）
"M040WP-DL-SL-75125-MM"
for AVS0.75mm2
■M terminal individually
"M040WP-DL-SL-0305-wr"
for 0.3-0.5㎟
■M terminal individually
"M040WP-DL-SL-75125-wr"
for 0.75-1.25㎟
■Wire seal（S size）[Reddish Brown]
"WS7165-0547DL-SL-BNG"
■Wire seal（M size）[Blue]
"WS7165-0548DL-SL-BL"
■Dummy plug
"DP7165-0432-BK"
Please use without terminals.
