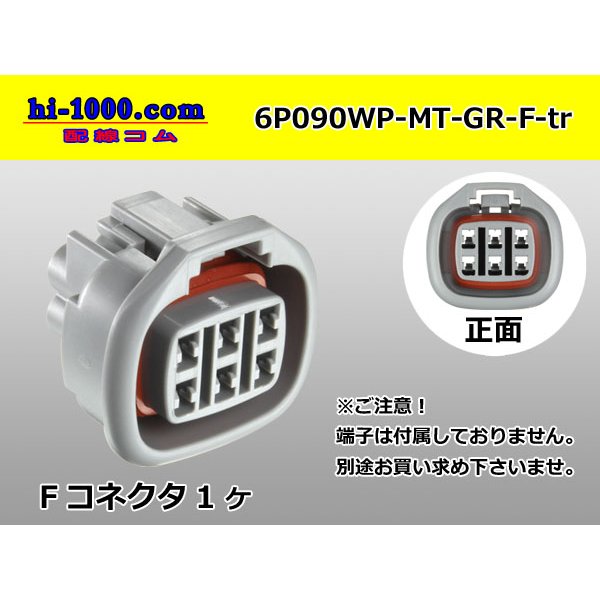

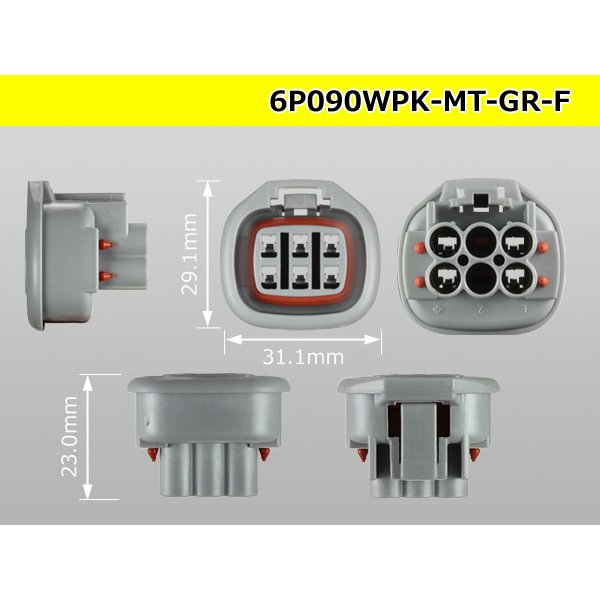

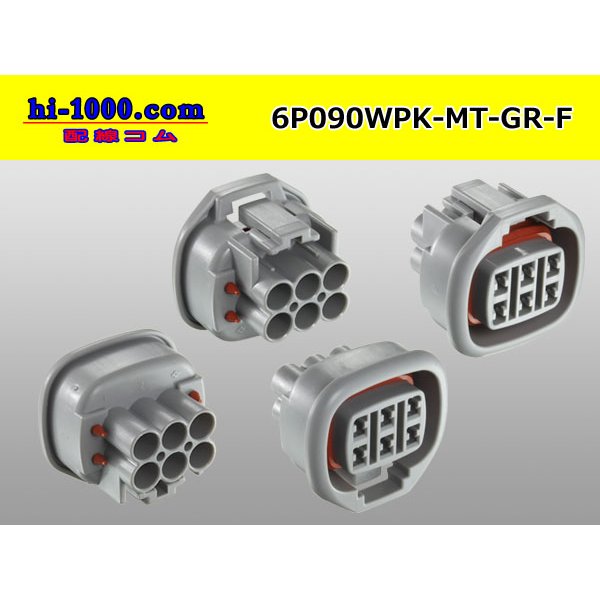

●[sumitomo] 090 type MT waterproofing series 6 pole F connector [gray]（no terminals）/6P090WP-MT-GR-F-tr [6P090WP-MT-GR-F-tr]
![Photo1: ●[sumitomo] 090 type MT waterproofing series 6 pole F connector [gray]（no terminals）/6P090WP-MT-GR-F-tr](https://www.hi-1000ec.com/data/hi-1000/product/product/61720056_o1.jpg)
![Photo2: ●[sumitomo] 090 type MT waterproofing series 6 pole F connector [gray]（no terminals）/6P090WP-MT-GR-F-tr](https://www.hi-1000ec.com/data/hi-1000/product/product/61720056_o2.jpg)
![Photo3: ●[sumitomo] 090 type MT waterproofing series 6 pole F connector [gray]（no terminals）/6P090WP-MT-GR-F-tr](https://www.hi-1000ec.com/data/hi-1000/product/product/61720056_o3.jpg)
●[sumitomo] 090 type MT waterproofing series 6 pole F connector [gray]（no terminals）/6P090WP-MT-GR-F-tr
[6P090WP-MT-GR-F-tr]
Price: US$8.03
Weight: 15g
Stock:167
This product is only the F side connector. Please buy F terminal, the wire seal separately.
In addition, the counterpart is not included, too; please buy it separately.
The corresponding terminal separately prepares it as follows.
Please find necessary amount.
It is available as a spare for the repair.
■F terminal simple substance
"F090WP-HM-HW-MT-wr"
■Wire seal
"WS7160-8234HM-MT"
By two points of combinations mentioned above
It supports an electric wire of AVSSB0.5/AVS0.5-1.25.
■Dummy stopper
"7160-9465HM"
I use it for the part without the terminal
■The terminal with the electric wire is recommended!
"F090WP-HM-MT-AVS05"
The setting of the fitting counterpart is not published in the catalogue of the maker which there is not.
In Sumitomo Wiring Systems, it is thought that it is not manufactured from a coupler simple substance.
In addition, the counterpart is not included, too; please buy it separately.
The corresponding terminal separately prepares it as follows.
Please find necessary amount.
It is available as a spare for the repair.
■F terminal simple substance
"F090WP-HM-HW-MT-wr"
■Wire seal
"WS7160-8234HM-MT"
By two points of combinations mentioned above
It supports an electric wire of AVSSB0.5/AVS0.5-1.25.
■Dummy stopper
"7160-9465HM"
I use it for the part without the terminal
■The terminal with the electric wire is recommended!
"F090WP-HM-MT-AVS05"
The setting of the fitting counterpart is not published in the catalogue of the maker which there is not.
In Sumitomo Wiring Systems, it is thought that it is not manufactured from a coupler simple substance.
