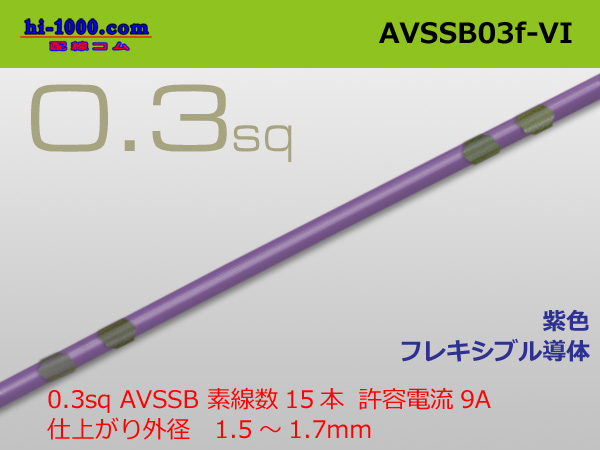

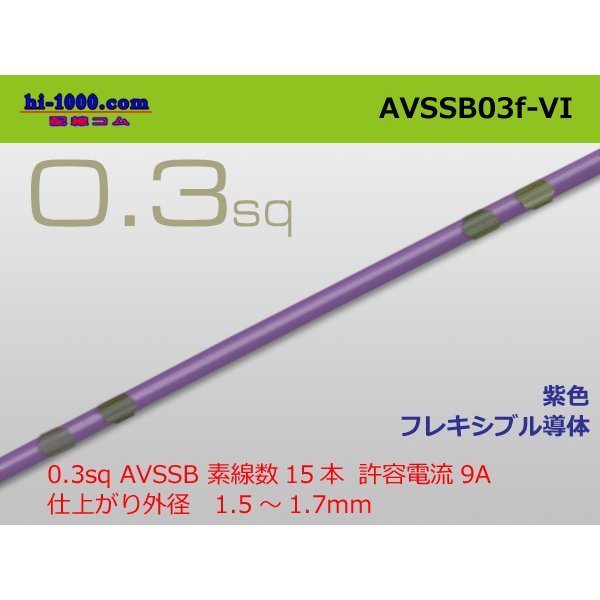

Sumitomo AVSSB 0.3f Automotive Wire - 1m [Violet] /AVSSB03f-VI [AVSSB03f-VI]

Price: per meter
The wire is supplied in one continuous length based on the quantity ordered.
Example: To order 10 meters, enter “10” in the quantity field.
Maximum length: 1,000 meters per reel, subject to available stock.

APPLICATION

Wires used in low voltage circuits for automobiles (vehicles and motorcycles).

FEATURES

AVSSB wires have thinner insulation than CPAVS wires.

Heat Resistance Class

80℃
*The Heat resistance class defines the maximum allowable temperature of conductors when applying current for 10,000 hours cumulatively.

Brand：Sumitomo Wiring Systems
Series：AVSSB Very Thin PVC Insulated Low-voltage Copper Wires for Automobiles (Thinned CPAVS)
Size：0.3(f-type)
Construction(No./mm)：15/0.18
Calculated Area(mm2)：0.3817
Outer Diameter(mm)：0.8
Insulation Thickness(mm)：0.35
Overall Diameter(mm)：1.5-1.7

Permissible Current[A] （According to JASO D609）in case of 0.3(f)
Ambient temperature（℃） 20 30 40 50 60 70
Permissible Curren (A)　 11 10 9 7 6 4

*Permissible currents are the currents which the saturation temperatures of conductor up to allowed heat resisted temperatures under the each ambient temperatures.
*The current tolerance in the image is notation in case of ambient temperature 40 degrees.
