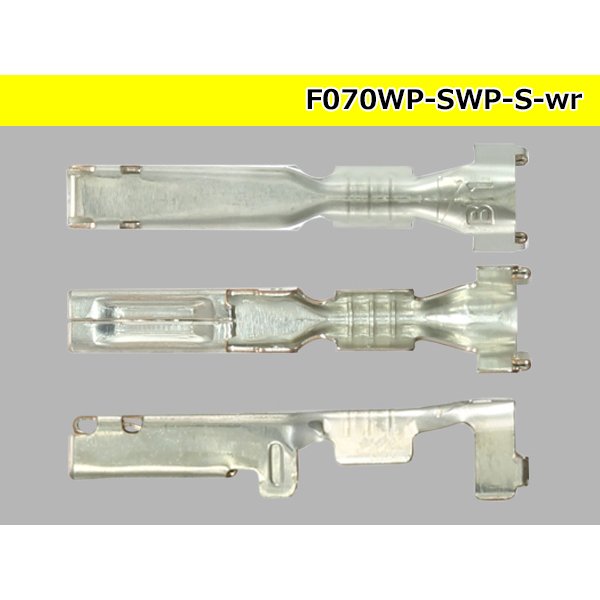

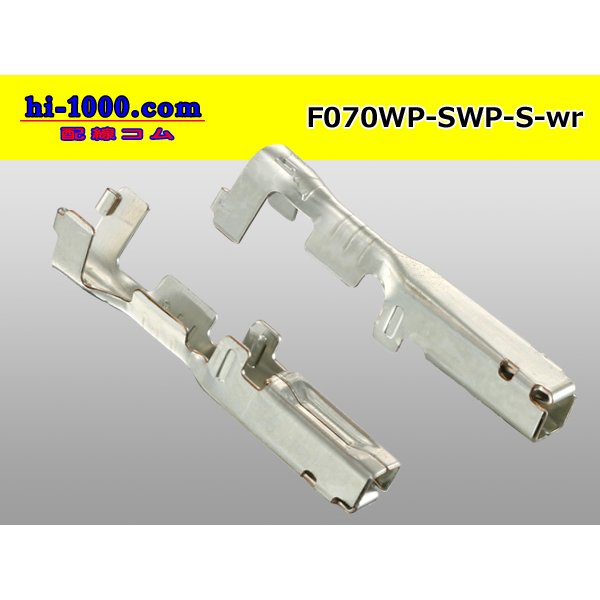

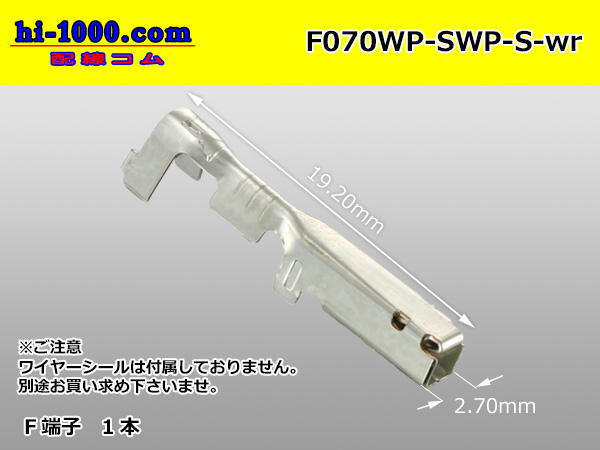

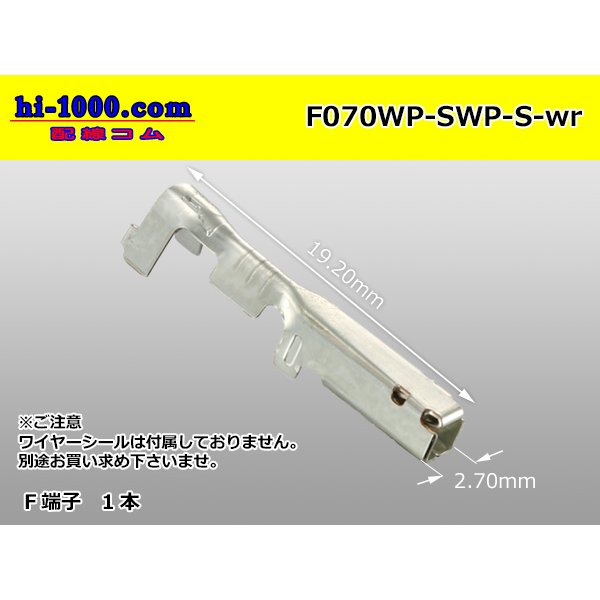

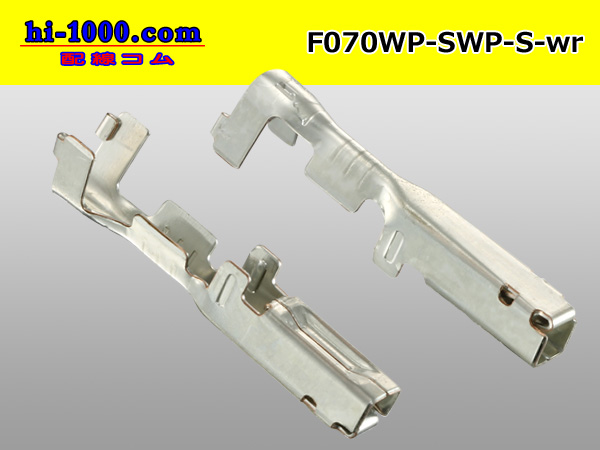

070 Tab Size Sealed Female Terminal – Size S – Yazaki SWP Connector Series (No Wire Seal) [F070WP-SWP-S-wr]

This product includes one sealed female terminal only.
Please purchase wire seal separately.

---

[ Product Details ]
Brand：Yazaki
Series：SWP Connector Series
Tab Size：070
Male/Female：Female
Sealed：Yes
Material：Copper Alloy
Surface Treatment：Tin plating
Wire Seal：Sold Separately
Applicable Wire Size：0.3-0.5mm2

---

■Compatible Wire Seals
・Size M
└"WS-SWP-7812-BK"
- for AVS0.3-0.5/CAVS0.5 wires.

---

◆Recommended Crimping Tool
"P-706"
Crimping guideline：（for AVS0.5f wire）
for the conductor 1.7L/1.7H | for the Wire Seal Section4.0φ
Please note that this is for reference only.
Actual results may vary depending on the wire used.
