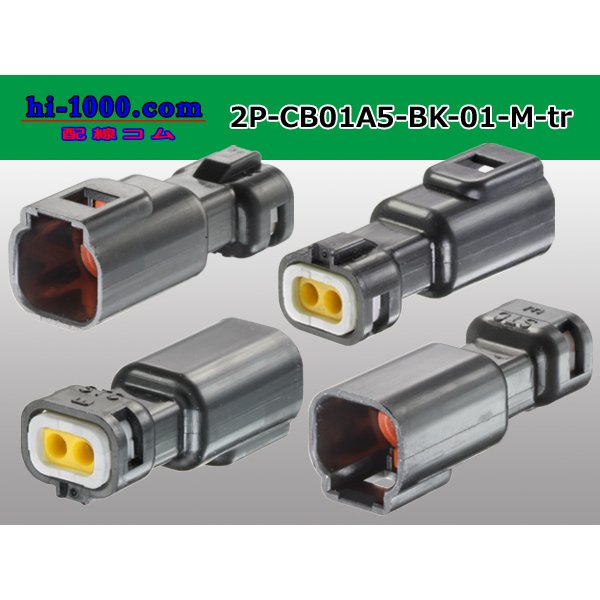

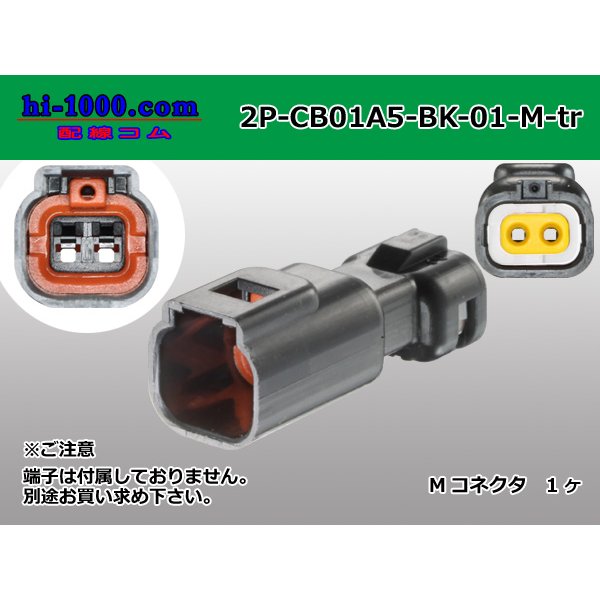

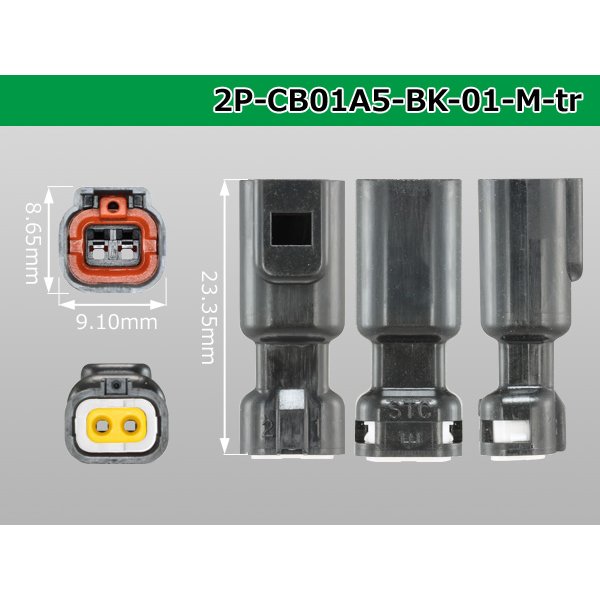

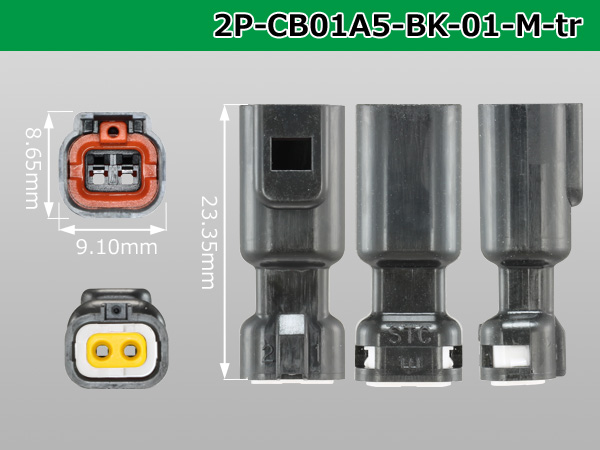

●[sumiko tec] CB01 series 2 pole waterproofing M connector (no terminals)/2P-CB01A5-BK-01-M-tr [2P-CB01A5-BK-01-M-tr]
![Photo1: ●[sumiko tec] CB01 series 2 pole waterproofing M connector (no terminals)/2P-CB01A5-BK-01-M-tr](https://www.hi-1000ec.com/data/hi-1000/product/2p-cb01a5-bk-01-m-tr.jpg)
![Photo2: ●[sumiko tec] CB01 series 2 pole waterproofing M connector (no terminals)/2P-CB01A5-BK-01-M-tr](https://www.hi-1000ec.com/data/hi-1000/product/2p-cb01a5-bk-01-m-tr-1.jpg)
![Photo3: ●[sumiko tec] CB01 series 2 pole waterproofing M connector (no terminals)/2P-CB01A5-BK-01-M-tr](https://www.hi-1000ec.com/data/hi-1000/product/2p-cb01a5-bk-01-m-tr-2.jpg)
●[sumiko tec] CB01 series 2 pole waterproofing M connector (no terminals)/2P-CB01A5-BK-01-M-tr
[2P-CB01A5-BK-01-M-tr]
Price: US$2.33
Weight: 15g
Stock:31
This product is the M side connector. Please buy the terminal separately.
In addition, please demand it separately as the counterpart is not included.
Product contents
A maker: sumiko technical center
Series: CB01
Standard size: -
Waterproofing: M
Hue : Black
Wire seal part electric wire coating outer diameter: 1.0-1.3mm (yellow) small size
Pole number : 2
Terminal : Separate sale
The number minute when I need the terminal
Please buy it separately.
You can use it as a spare for the repair.
■M terminal
"M-CB01-S" small size
0.1mm2 - 0.3mm2 (AWG22-28) electric wire use
■Dummy stopper
"DP-CB01"
It is necessary for the part without the terminal
A fitting counterpart is this
◆"2P-CB01A6-BK-01-F-tr" (terminals)
＊There is not the setting of the wire seal simple substance to this product
A wire seal is set on the connector side.
＊You push white parts (リテーナー) of the connector back, and please lock a terminal after the insertion from the rear
In addition, please demand it separately as the counterpart is not included.
Product contents
A maker: sumiko technical center
Series: CB01
Standard size: -
Waterproofing: M
Hue : Black
Wire seal part electric wire coating outer diameter: 1.0-1.3mm (yellow) small size
Pole number : 2
Terminal : Separate sale
The number minute when I need the terminal
Please buy it separately.
You can use it as a spare for the repair.
■M terminal
"M-CB01-S" small size
0.1mm2 - 0.3mm2 (AWG22-28) electric wire use
■Dummy stopper
"DP-CB01"
It is necessary for the part without the terminal
A fitting counterpart is this
◆"2P-CB01A6-BK-01-F-tr" (terminals)
＊There is not the setting of the wire seal simple substance to this product
A wire seal is set on the connector side.
＊You push white parts (リテーナー) of the connector back, and please lock a terminal after the insertion from the rear
●[sumiko tec] CB01 series 2 pole waterproofing M connector (no terminals)/2P-CB01A5-BK-01-M-tr
[2P-CB01A5-BK-01-M-tr]
Price: US$2.33
Weight: 15g
Stock:31
