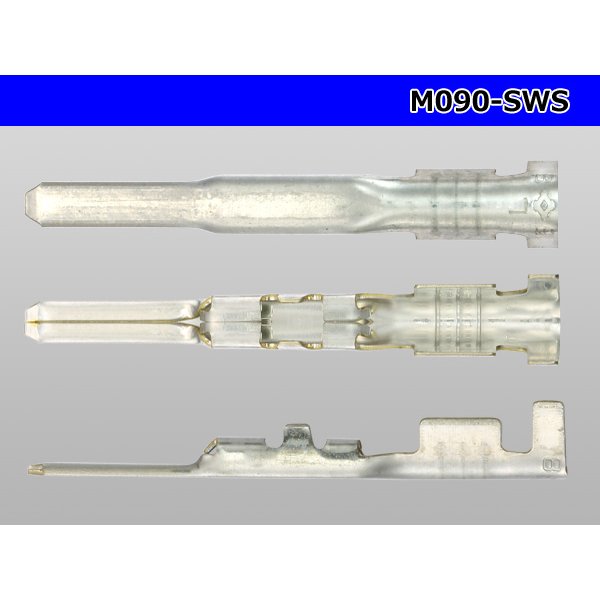

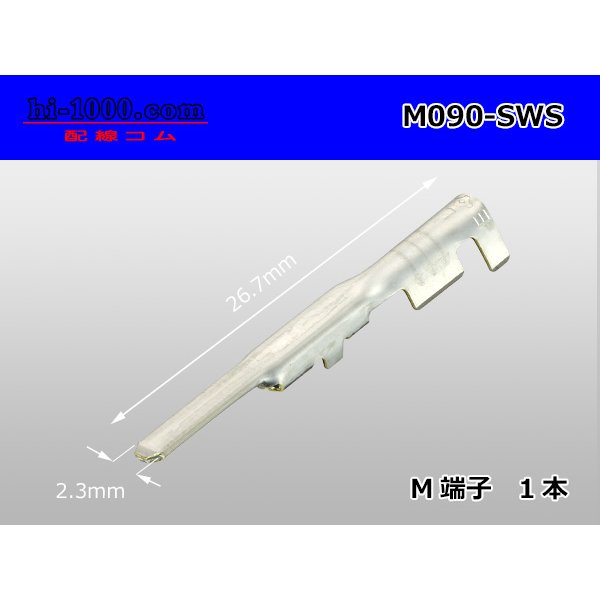

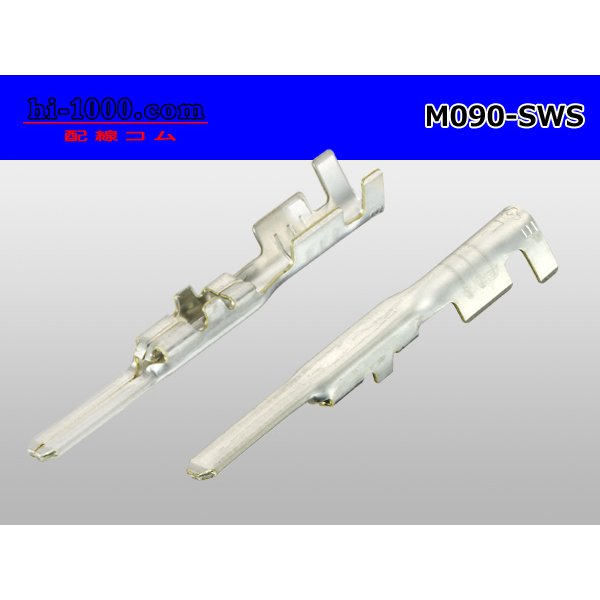

★Stock limit ★090 model HM | made by Sumitomo Wiring Systems MT | DS | HD series M terminal /M090-SWS [M090-SWS]

090 model HM | made by Sumitomo Wiring Systems MT | DS | HD series M terminal /M090-SWS (this product is one price.)

A maker: Sumitomo Wiring Systems
A standard: 090 type
A name: 2.3(090) type
＊A maker model number supporting the male side of the 090 model connector HM/MT/DS/HD series made by Sumitomo Wiring Systems: 8230-4282

Application electric wire size: 0.5-1.25mm2 (AVS/CAVS)
Electric wire finish outer diameter: 1.6-2.9mm
Materials: Brass
Surface-treat: Sn plating board thickness: 0.3mm

※A form is the same, and there is the product of the other maker, too.
"M090" (product made by Yazaki Corporation)
It is available to the same connector.

※It is the product of the stock limit.

Recommended pressure bonding tool "PAD-13," "even other P-706" is possible
＊Indication of the pressure bonding processing
"PAD-13" conductor part 2.5-2.8 cover abdomen 2.8-3.1 "P-706" conductor part 2.4M cover abdomen 2.4H (it may be just mixed up by an electric wire to use which is an indication.)
