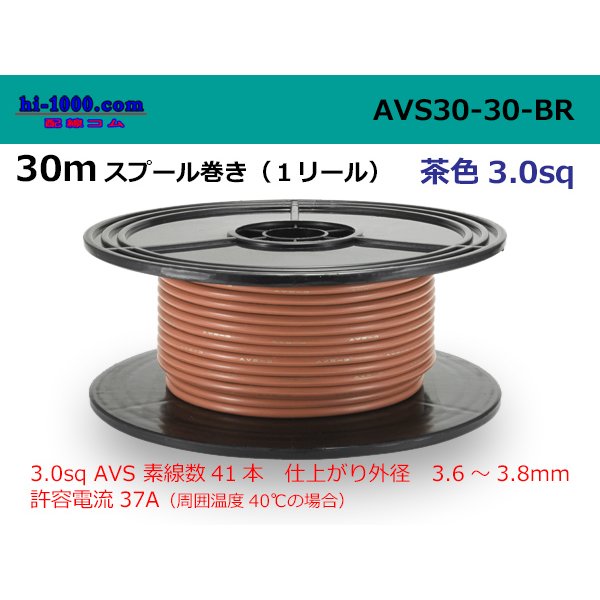

●[SWS] AVS3.0 spool 30m Winding 　 [color Brown] /AVS30-30-BR [AVS30-30-BR]

A price is a price of 1 reel of 30m.
Use I use it in (four of them, two) automotive low-pressure conductive trace.

Characteristic AVS is the type that thinned an insulator than AV, and lightweighting, small diameter of the wire harness is suitable for becoming it.
JASO D611 conformity
Heat-resistant division 80 degrees Celsius

Maker Sumitomo Wiring Systems
Series Escalope low pressure electric wire (escalope electric wire type 1) for the AVS car
Standard size 3.0
Number of the wires/wire diameter (this /mm) 41/0.32
Conductor calculation cross section (mm2) 3.297
Conductor outer diameter (mm) 2.4
Insulator thickness (mm) 0.6
Finish outer diameter (mm) 3.6-3.8

Current tolerance in case of 3.0
Ambient temperature (℃) 20 30 40 50 60 70
Current tolerance (A) 46 42 37 32 26 18
※The current tolerance is the electric current that conductor saturation temperature becomes the heat-resistant temperature under each ambient temperature.

The selling by piece is this
◆"The selling by piece of the 1m unit"
AVS30-BR
There is the 100m reel, too
◆"A 100m reel"
AVS30-100-BR
