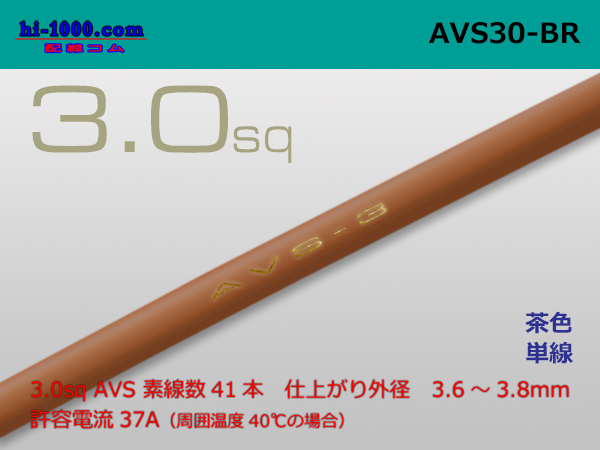

●[SWS] AVS3.0sq Thin-wall low-voltage electric wire for automobiles (1m) [color Brown] /AVS30-BR [AVS30-BR]

A price is a price around 1m.
An example: When 10 meters are necessary, please input with "10" to the number of the purchase.
I send it in "a connected state" to the purchase amount.
But the upper limit becomes number of the stock or 300m as 1 reel becomes 300m.

Use I use it in (four of them, two) automotive low-pressure conductive trace.
Characteristic AVS is the type that thinned an insulator than AV, and lightweighting, small diameter of the wire harness is suitable for becoming it.
JASO D611 conformity
Heat-resistant division 80 degrees Celsius

Maker Sumitomo Wiring Systems
Series Escalope low pressure electric wire (escalope electric wire type 1) for the AVS car
Standard size 3.0
Number of the wires/wire diameter (this /mm) 41/0.32
Conductor calculation cross section (mm2) 3.297
Conductor outer diameter (mm) 2.4
Insulator thickness (mm) 0.6
Finish outer diameter (mm) 3.6-3.8

Current tolerance in case of 3.0
Ambient temperature (℃) 20 30 40 50 60 70
Current tolerance (A) 46 42 37 32 26 18
※The current tolerance is the electric current that conductor saturation temperature becomes the heat-resistant temperature under each ambient temperature.

The person who wants a reel
◆"A 30m reel"

AVS30-30-BR
◆"A 100m reel"

AVS30-100-BR
