■[SWS] AVSSB0.5f spool 100m Winding 　 [color light blue] /AVSSB05f-100-LBL [AVSSB05f-100-LBL]

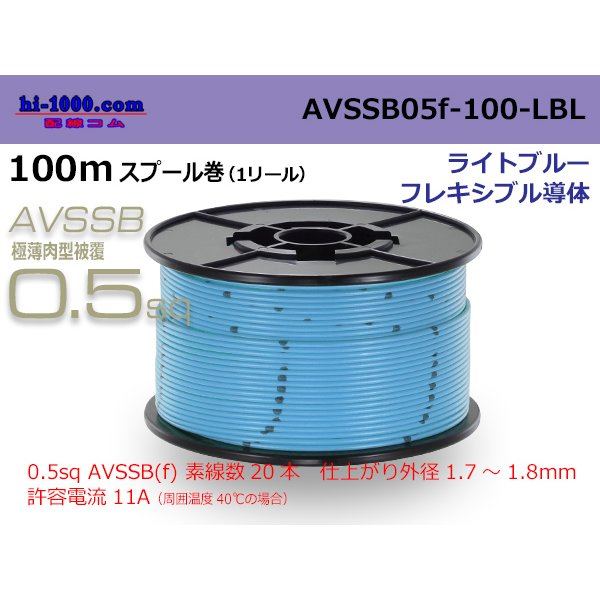

A price is a price of 1 reel of 100m. I send it in the state that I bound a spool with like an image. Use I use it in (four of them, two) automotive low-pressure conductive trace. Characteristic AVSSB thins an insulator of CPAVS more, and I am superior in cold-resistant flexibility, and a big effect is provided in lightweighting, 細経化. Because coating is light, I am suitable for production such as the wire harness. Heat-resistant class 80 degrees Celsius Maker Sumitomo Wiring Systems Series Pole escalope low pressure electric wire for the AVSSB(f-type) car Standard size 0.5(f) flexible constitution Number of the wires/wire diameter (this /mm) 20/0.18 Conductor calculation cross section (mm2) 0.5087 Conductor outer diameter (mm) 1.0 insulator thickness (mm) 0.35 Finish outer diameter (mm) 1.7-1.8 Current tolerance in case of 0.5(f) Ambient temperature (℃) 40 Current tolerance (A)11 ※The current tolerance is the electric current that conductor saturation temperature becomes the heat-resistant temperature under each ambient temperature. ※The current tolerance in the image is notation in case of ambient temperature 40 degrees.
