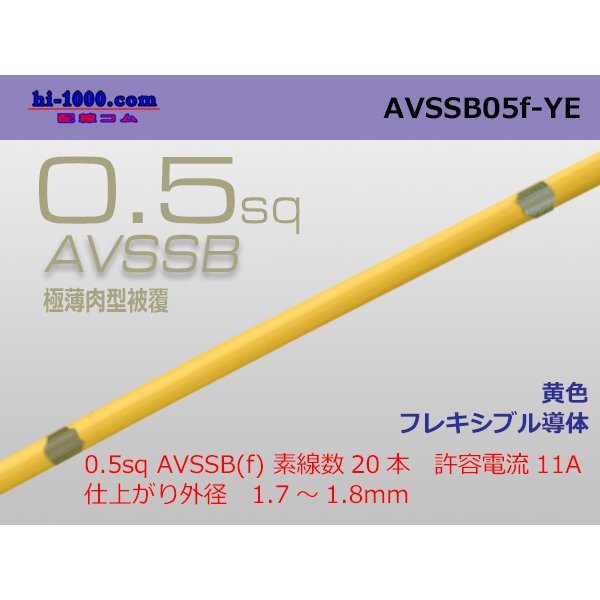

■[SWS] AVSSB0.5f (1m) [color yellow] /AVSSB05f-YE [AVSSB05f-YE]

■[SWS] AVSSB0.5f (1m) [color yellow] /AVSSB05f-YE [AVSSB05f-YE]

Price: US$1.20

Weight: 7g

Stock:437
Quantity:
A price is a price around 1m.
An example: When 10 meters are necessary, please input with "10" to the number of the purchase.
I send it in "a connected state" to the purchase amount.
But the upper limit becomes number of the stock or 1,000m as 1 reel becomes 1,000m.

Use I use it in (four of them, two) automotive low-pressure conductive trace.
Characteristic AVSSB thins an insulator of CPAVS more, and be superior to cold-resistant flexibility, lightweighting thin; a big effect is provided to pass.
Because coating is light, I am suitable for production such as the wire harness.
Heat-resistant class 80 degrees Celsius

Maker Sumitomo Wiring Systems
Series Pole escalope low pressure electric wire for the AVSSB(f-type) car
Standard size 0.5(f) flexible constitution

Number of the wires/wire diameter (this /mm) 20/0.18
Conductor calculation cross section (mm2) 0.5087
Conductor outer diameter (mm) 1.0
Insulator thickness (mm) 0.35
Finish outer diameter (mm) 1.7-1.8

Current tolerance in case of 0.5(f)
Ambient temperature (℃) 20 30 40 50 60 70
Current tolerance (A) 13 12 11 9 7 5

※The current tolerance is the electric current that conductor saturation temperature becomes the heat-resistant temperature under each ambient temperature.
※The current tolerance in the image is notation in case of ambient temperature 40 degrees.
