[JST] broadcast Male terminal (small size) /M-JST-SPAL-S [M-JST-SPAL-S]

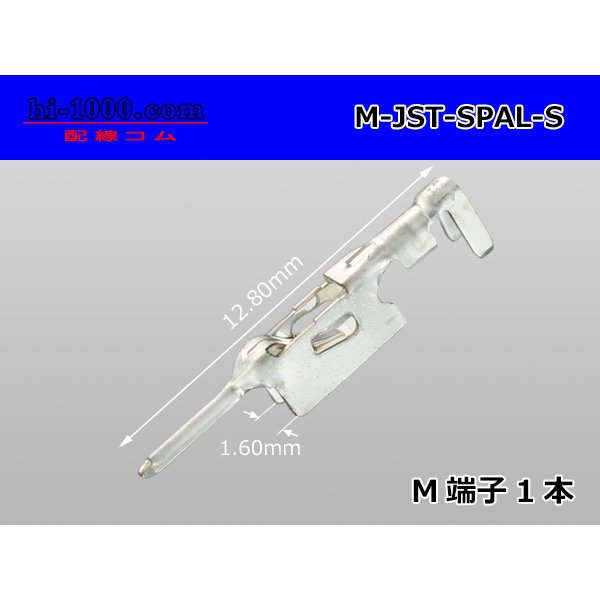

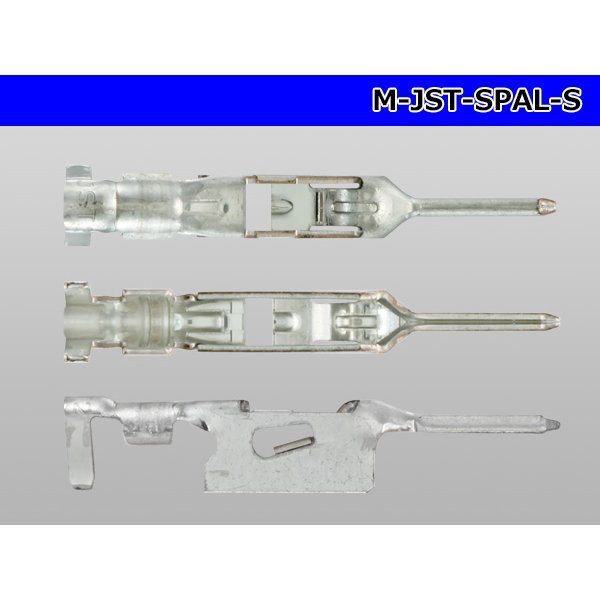

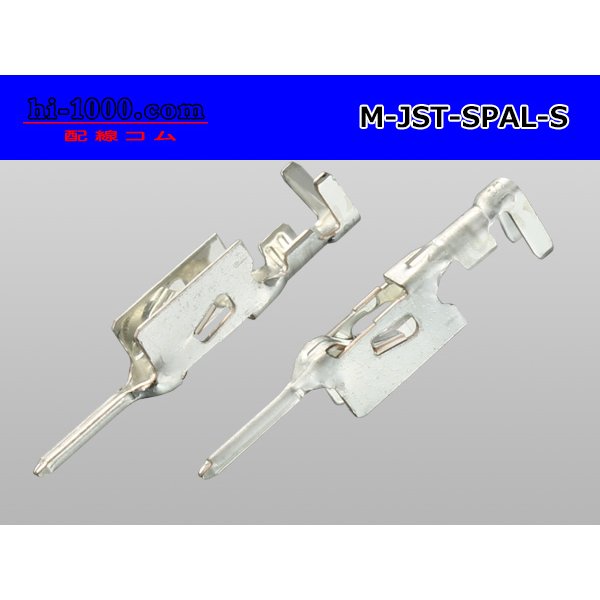

Male terminal (small size) /M-JST-SPAL-S for the PA series broadcast made in JST

Application electric wire size 0.08-0.21mm2 (AWG24-28) electric wire finish 0.9-1.5mm outside diameter

It is a terminal adapting to the "PA series" made in JST M side connector.

I crimp it and recommend work in the pressure bonding environment of the very small size about the processing.
Recommended pressure bonding tool "PA-09" "PAD-11."
PAD-11 (conductor part 1.0mm coating department 1.3-1.6mm) use electric wire AVSSC0.3f.
PA-09 (conductor part 1.0mm coating department 1.6mm) use electric wire AVSSC0.3f.
(I just change by the kind of the electric wire which is an example)
