[Furukawa]NMWP waterproofing M terminal (wire seal tea coloring) /M090WP-SJD-NMWP-M [M090WP-SJD-NMWP-M]

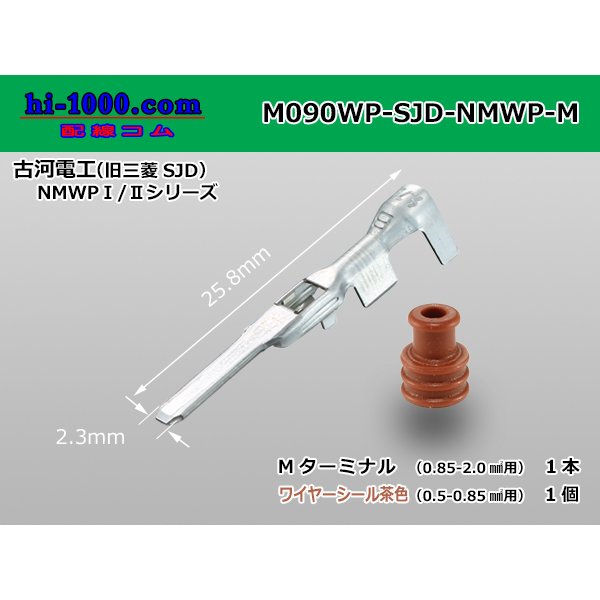

This product is one terminal (small size) on the M side (male) and set product of one wire seal (brown).
In addition, please be careful as the fitting counterpart is not included.

Product contents
Maker Furukawa Electric (former MITSUBISHI CABLE INDUSTRIES)
Series NMWPI/II
Standard size 090
Waterproofing/non-waterproofing Waterproofing
M/F M

Correspondence electric wire size of the terminal AV/AVS/AVSS/AVX/AEX0.3 - 0.5mm2 (small size)
Wire seal 0.5-0.85mm2 brown
One Attachment
By the combination mentioned above
It supports an electric wire of AV/AVS0.5mm2

In the case of an unnecessary, a wire seal is this in a terminal simple substance
■Terminal simple substance
"M090WP-SJD-NMWP-S-wr"

It is available as a spare for the repair
■Wire seal
"WS-SJD-NMWP-1.9BR" brown

In addition, in the case of use, please choose this by an electric wire of AVS0.85mm2 where there is the set product of a terminal and the wire seal.
■M terminal + wire seal (brown)
"M090WP-SJD-NMWP-M"
In the case of use, please choose this by an electric wire of AVS1.25-2.0mm2.
■M terminal + wire seal (purple)
"M090WP-SJD-NMWP"
