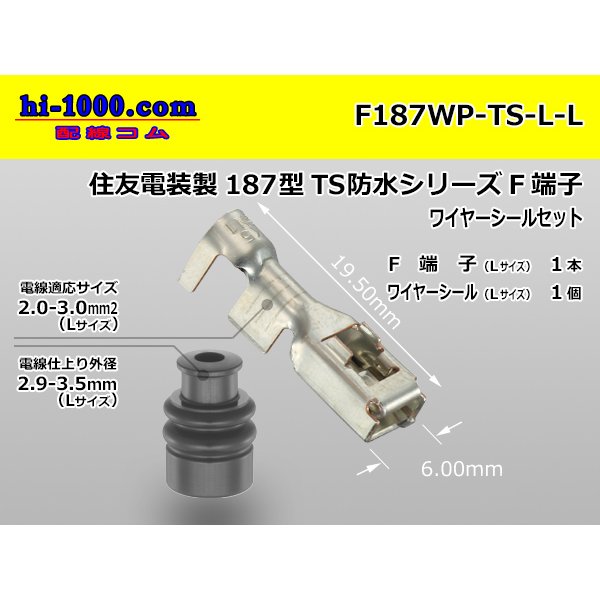

[Sumitomo]187TS waterproofing F terminal (large size) wire seal (large size) /F187WP-TS-L-L [F187WP-TS-L-L]

It is one female terminal (large size) and wire seal (large size) one.
In the case of use, please choose this product by an electric wire of AV/AVX/AEX/AVS 2.0mm2.

Product contents
Maker Sumitomo Wiring Systems
Series TS/HX/DL
Standard size 187
Waterproofing/non-waterproofing Waterproofing
M/F F
Correspondence electric wire size of the terminal AVS2.0-3.0mm2 (large size)
Electric wire finish outer diameter of WS 2.9-3.5mm (large size) attachment

In the case of an unnecessary, a wire seal is this in a terminal simple substance
◆"Only a terminal" F187WP-TS-L-wr
Adaptation electric wire size AVS2.0-3.0mm2 (large size)

Simple substance of the corresponding wire seal
■Large size wire seal "WS7165-0348TS-DL-DGRY"
●Application electric wire size 2.0mm2 (AV/AVX/AEX/AVS)
Electric wire finish 2.9-3.5mm outside diameter
■LL size wire seal "WS7165-0356TS-DL-NV"
●Application electric wire size 3.0mm2 (AV/AVX/AEX/AVS)
Electric wire finish 3.5-4.1mm outside diameter
