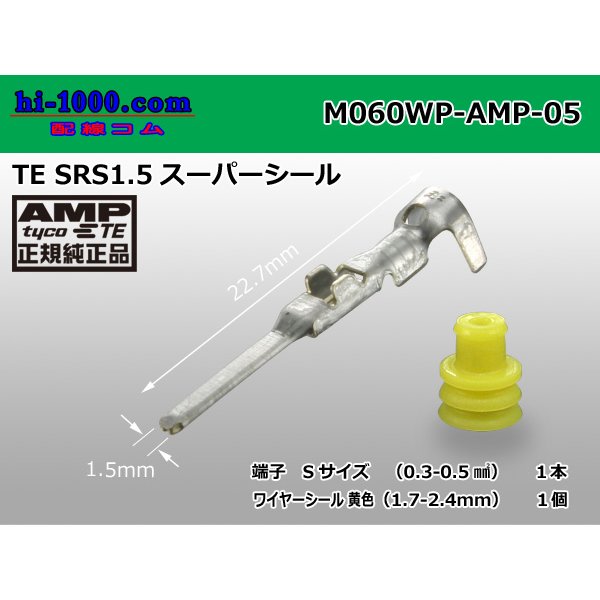

●060 model SRS1.5 waterproofing M terminal (small size) + yellow wire seal made in AMP (medium size) / M060WP-AMP-05 [M060WP-AMP-05]

This product is one M terminal (small size) and wire seal (medium size) yellow one.
It becomes that it supports an electric wire of AVS/AVSS0.5mm2 by two points of combinations mentioned above.

Product contents
Maker TE (old AMP)
Series SRS1.5 supermarket seal
Standard size 060
Waterproofing/non-waterproofing Waterproofing
M/F M
Wire seal (medium size yellow) attachment

The terminal simple substance which is available as repair, the spare that we have the sale of the one piece of article of this product
◆Terminal simple substance "M060WP-AMP-0305-wr"
Adaptation electric wire size 0.3-0.5mm2 (small size)

Wire seal simple substance
■Wire seal (medium size) yellow
"WS-934-2-YE"
Adaptation electric wire 1.7-2.4mm outside diameter

You add other size and electric wire size to use that there is separately and have a choice. In the case of use, please choose this by an electric wire of AVSS0.3mm2 (separately a sale product).
■M terminal (small size) + wire seal (small size light green)
"M060WP-AMP-03505"
＊Please find the necessary number
In the case of use, please choose this by an electric wire of AVS0.75/AVSS1.25mm2.

■M terminal (medium size) + wire seal (medium size yellow)
"M060WP-AMP-07515"
＊Please find the necessary number
In the case of use, please choose this by an electric wire of AVS/AVSS2.0mm2.

■M terminal (large size) + wire seal (large size red)
"M060WP-AMP-1525"
＊Please find the necessary number
