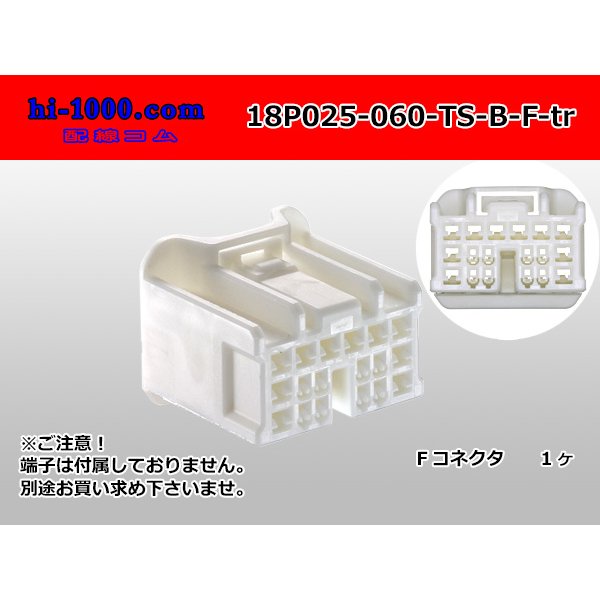

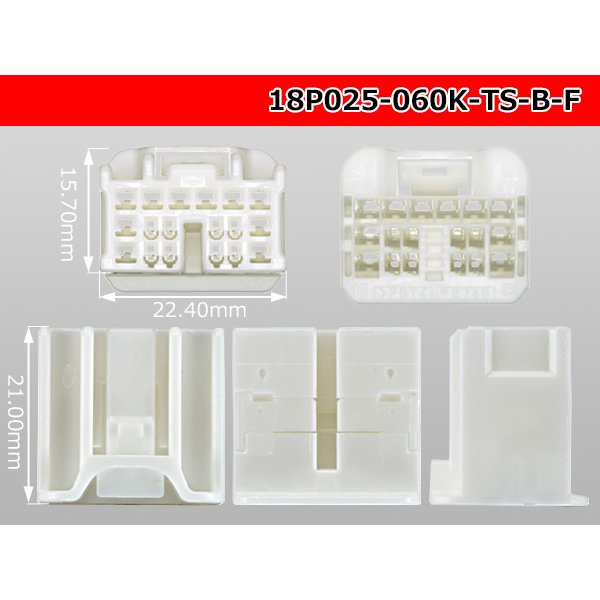

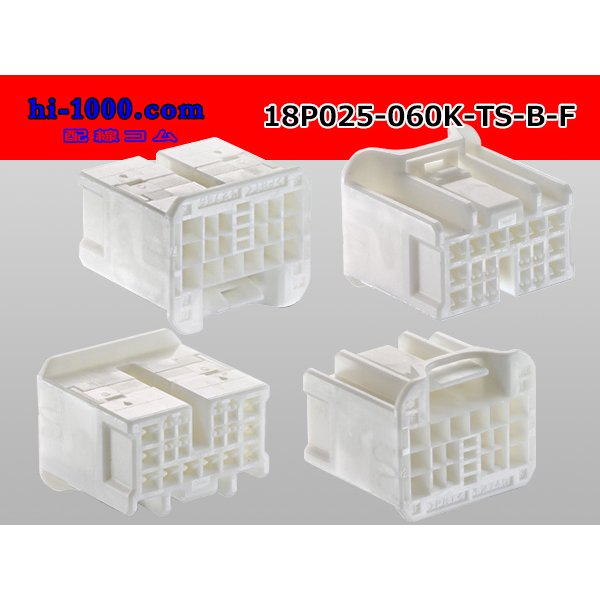

●[sumitomo] 025 type +060 type TS series hybrid 18 pole F connector[type B] (no terminals) /18P025-060-TS-B-F-tr [18P025-060-TS-B-F-tr]

The 025 model +060 type TS series hybrid 18 pole F connector [B type] (terminals) /18P025-060-TS-B-F-tr book product made by Sumitomo Wiring Systems, please demand for necessary number from the terminal only in a connector separately.

The corresponding terminal prepares separately as follows.
In addition, you can use it as a spare for the repair.

025 type (eight places)
■025 F terminals
"M025"
Electric wire adaptation size 0.3-0.5mm2

060 type (ten places)
■060 F terminals
"F060-TS"
Electric wire adaptation size 0.75-1.25mm2

025 models (eight places) that the terminal with the electric wire is the terminal which crimps it, and has been processed
■F terminal with 025 electric wires
"F025-CAVS03"

A fitting counterpart is this
■"18P025-060-TS-B-M-tr" (terminals)

＊Please be careful to the convex position, shape that there are other connectors of the very similar shape, sequence, the number of the terminal.

＊Please be careful to the convex position, shape that there are other connectors of the very similar shape, sequence, the number of the terminal.
