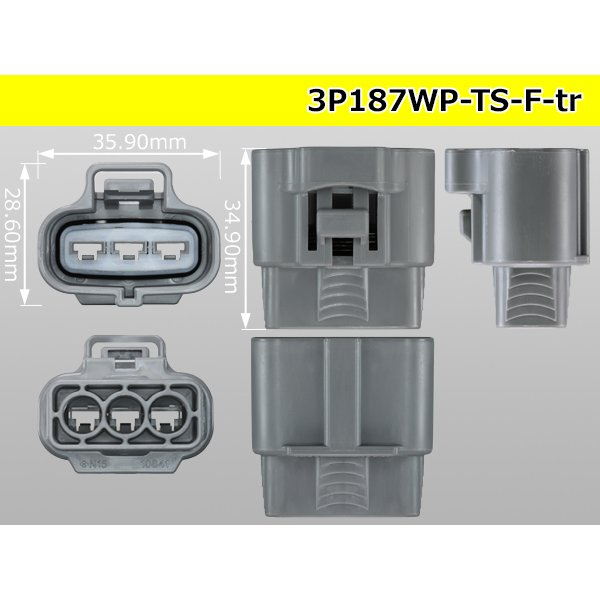

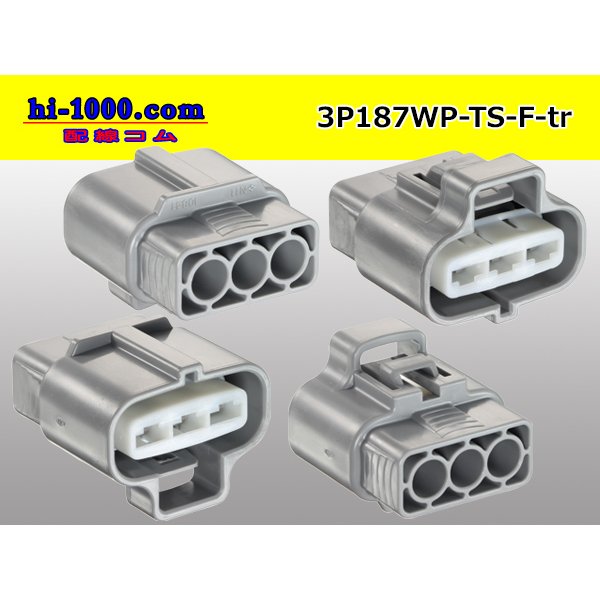

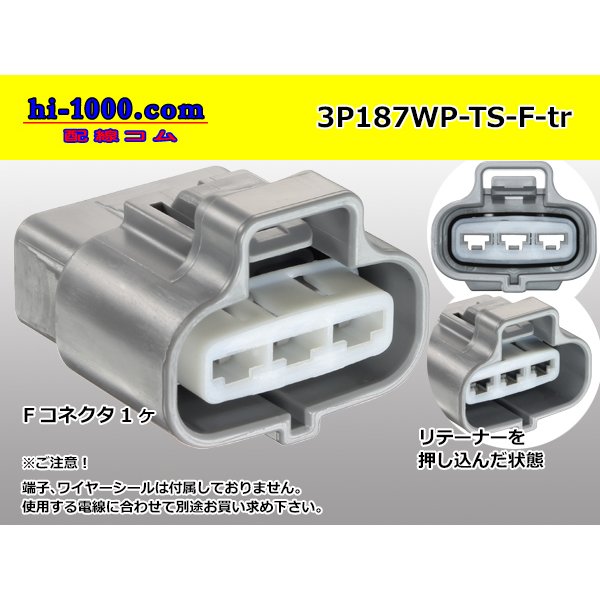

●[sumitomo] 187 type 3 pole TS waterproofing F connector (no terminal)/3P187WP-TS-F-tr [3P187WP-TS-F-tr]

This product is only the F side connector. Please buy M terminal, the wire seal separately.
In addition, the M side of the counterpart is not included, too; please buy it separately.
Toyota pure article number 90980-10841 equivalency product

The corresponding terminal separately prepares it as follows.
Please find necessary amount.
In addition, it is available as a spare for the repair.

■An electric wire of AVS0.5-1.25mm2 in the case of use
F terminal (medium size) + wire seal (medium size)
Set of one F terminal and one wire seal
■An electric wire of AVS2.0-3.0mm2 in the case of use
F terminal (large size) + wire seal (large size)
Set of one F terminal and one wire seal
■An electric wire of AVS3.0mm2 in the case of use
F terminal (large size) + wire seal (LL size)
Set of one F terminal and one wire seal

Simple substance of terminal/wire seal
■F terminal simple substance (medium size)
"F187WP-TS-M-wr"
■F terminal simple substance (large size)
"F187WP-TS-L-wr"
■wire seal simple substance (mediuM size)
"WS7165-0347TS-DL-DGRE"
■Wire seal simple substance (large size)
"WS7165-0348TS-DL-DGRY"
■Wire seal simple substance (LL size)
"WS7165-0356TS-DL-NV"

A fitting counterpart is this
◆"Only a connector"
3P187WP-TS-M-tr
