●[SWS] AVSSC0.3f spool 30m winding red, blue stripe /AVSSC03f-30-RDBL [AVSSC03f-30-RDBL]

A price is a price of 1 reel (30m).

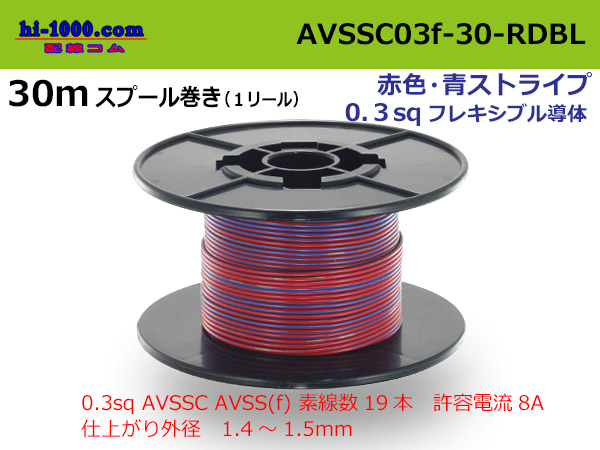

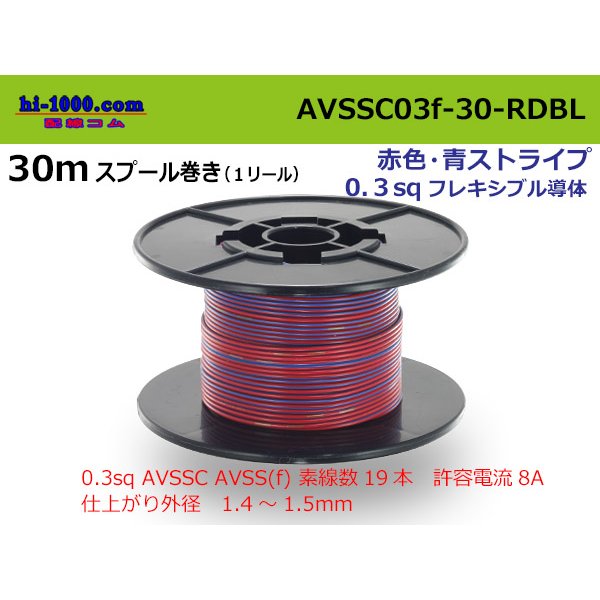

I send it in the state that I bound a spool with like an image.


Use I use it in the low-pressure conductive trace of automotive (four-wheeled mainly)

Characteristic AVSSC is Sumitomo name of AVSS(f).

Heat-resistant class 80 degrees Celsius



Maker Sumitomo Wiring Systems

Series Escalope low pressure electric wire (escalope electric wire type 2) for the AVSSC(f-type) car

Standard size 0.3(f) flexible constitution



Number of the wires/wire diameter (this /mm) 19/0.16

Conductor calculation cross section (mm2) 0.3821

Conductor outer diameter (mm) 0.8

nonconductor(mm) 0.3

Finish outer diameter(mm) 1.4-1.5



※The current tolerance in the image is notation in case of ambient temperature 40 degrees.
