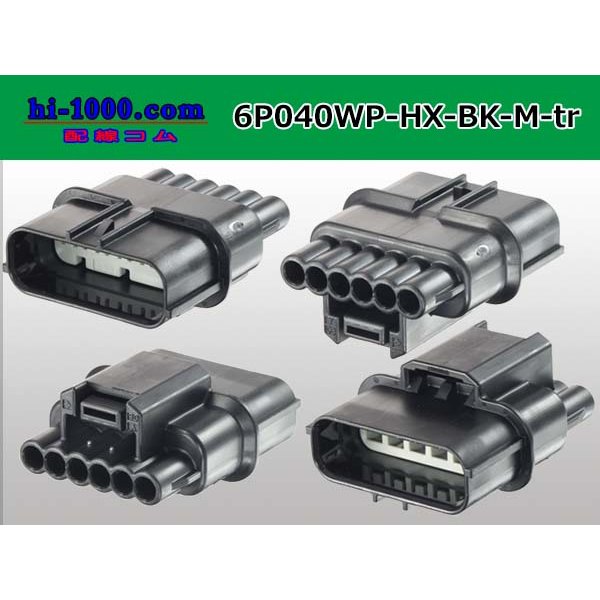

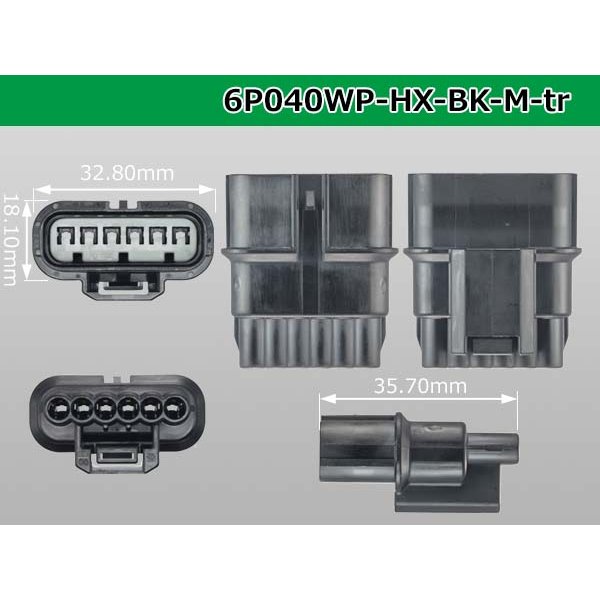

●[sumitomo] 040 type HX [waterproofing] series 6 pole (one line of side) M side connector[black] (no terminals)/6P040WP-HX-BK-M-tr [6P040WP-HX-BK-M-tr]

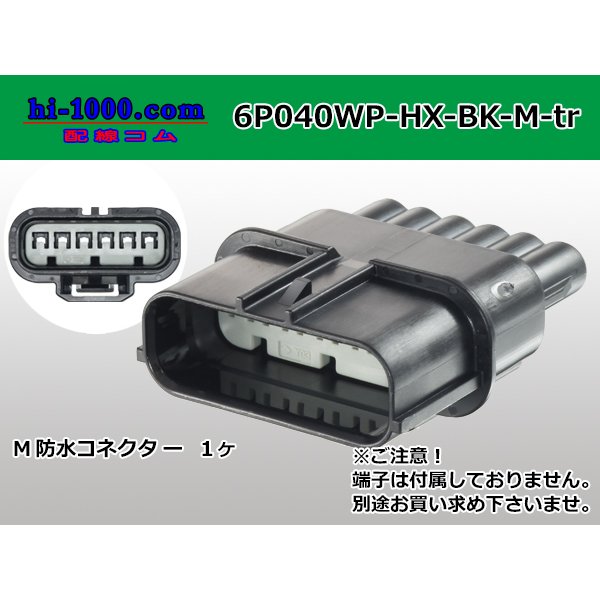

This product is M side connector.
Please buy the M terminal, the wire seal and dummy plug are separately.
In addition, the F side connector is not included, too.
please buy it separately.


Brand： Sumitomo Wiring Systems
Series：HX waterproofing series
Standard size：040
Hue：Black
Gender：Male
Number of Positions：Waterproofing 6 Position
Terminal / Wire seal：selling separately


Corresponding terminals separately prepare it as follows.
Please find necessary amount.
In addition, it is available as a spare for the repair.



◆F side connector（No terminals)
"6P040WP-HX-BK-F-tr"

■M terminal（0.75-1.25㎟） + wire seal（M size）
"M040WP-HX"
for AVS0.75-0.85mm2

■M terminal（0.3-0.5㎟） + wire seal（M size）
"M040WP-HX-HV0305-M"
for AVS0.5mm2

■M terminal（0.3-0.5㎟） + wire seal（SS size）
"M040WP-HX-HV0305-SS"
for AVSS/AVSSB/AVSSC/0.3mm2

■M terminal individually
"M040WP-HX-wr"
for 0.75-1.25㎟

■M terminal individually
"M040WP-HX-HV0305-wr"
for 0.3-0.5㎟

■Wire seal（M size）
"WS7165-0622HX-MV"
for 1.8-2.2mm

■Wire seal（SS size）
"WS7165-1075-HX-HV-OR"
for 1.1-1.6mm

■Dummy plug
"DP7165-0432-BK"
Please use without terminals.
