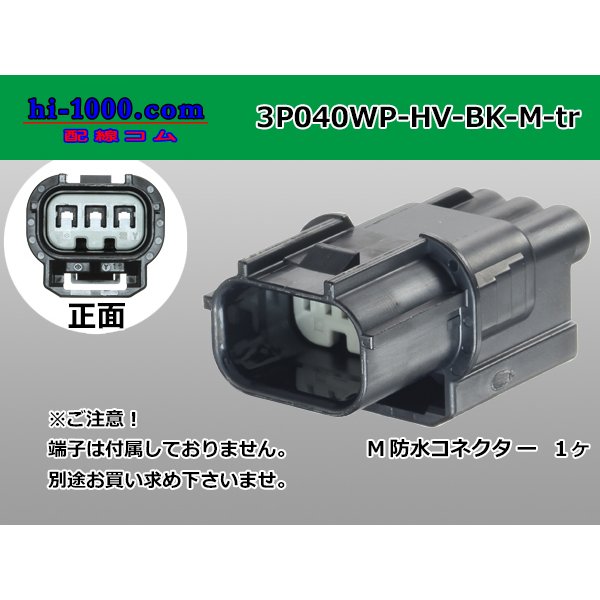

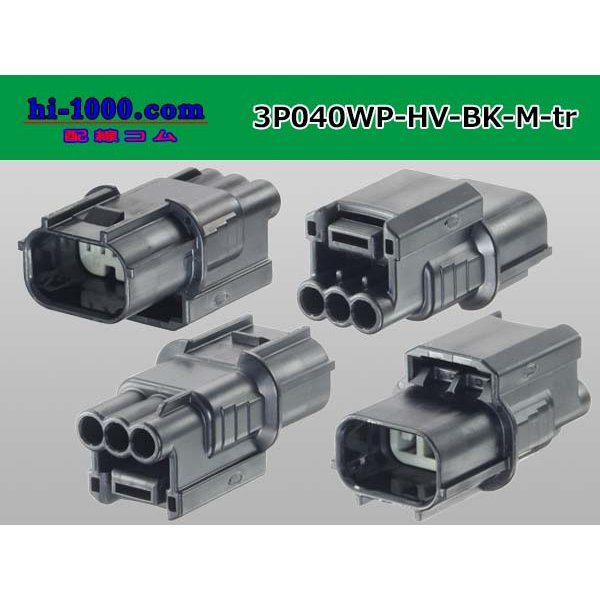

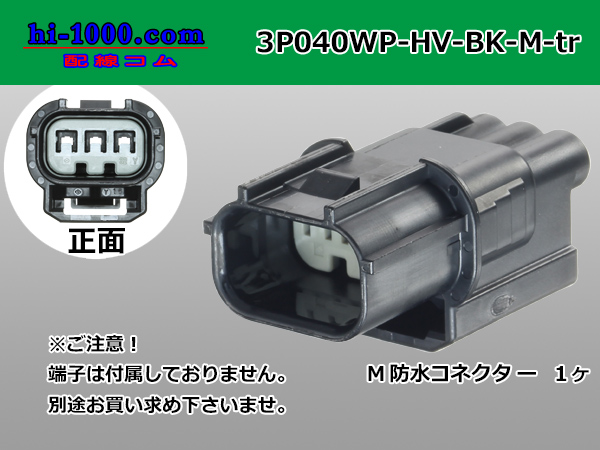

●[sumitomo] 040 type HV/HVG [waterproofing] series 3 pole M side connector, it is (no terminals) /3P040WP-HV-BK-M-tr [3P040WP-HV-BK-M-tr]
![Photo1: ●[sumitomo] 040 type HV/HVG [waterproofing] series 3 pole M side connector, it is (no terminals) /3P040WP-HV-BK-M-tr](https://www.hi-1000ec.com/data/hi-1000/product/20231214_36fcc0.jpg)
![Photo2: ●[sumitomo] 040 type HV/HVG [waterproofing] series 3 pole M side connector, it is (no terminals) /3P040WP-HV-BK-M-tr](https://www.hi-1000ec.com/data/hi-1000/product/20231107_2213c6.jpg)
![Photo3: ●[sumitomo] 040 type HV/HVG [waterproofing] series 3 pole M side connector, it is (no terminals) /3P040WP-HV-BK-M-tr](https://www.hi-1000ec.com/data/hi-1000/product/20231107_e3dde8.jpg)
![Photo4: ●[sumitomo] 040 type HV/HVG [waterproofing] series 3 pole M side connector, it is (no terminals) /3P040WP-HV-BK-M-tr](https://www.hi-1000ec.com/data/hi-1000/product/20231107_341c98.jpg)
●[sumitomo] 040 type HV/HVG [waterproofing] series 3 pole M side connector, it is (no terminals) /3P040WP-HV-BK-M-tr
[3P040WP-HV-BK-M-tr]
Price: US$4.60
Weight: 15g
Stock:109
This product is M side connector.
Please buy the M terminal, the wire seal and dummy plug are separately.
In addition, the F side connector is not included, too.
please buy it separately.

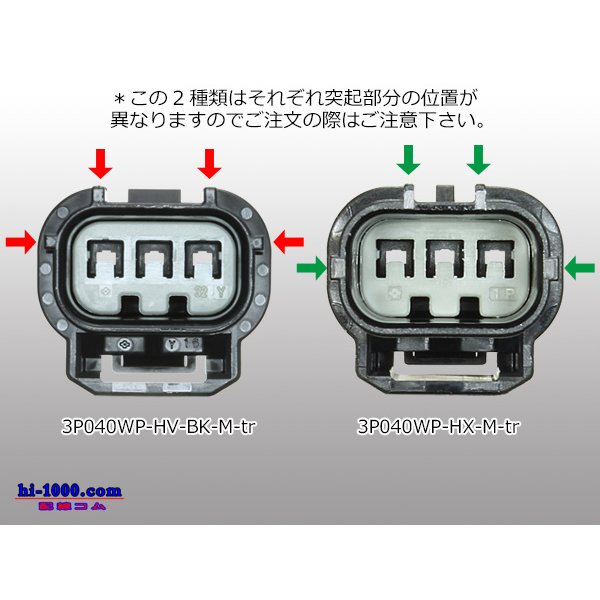

*Due to the change in the manufacturer series name, the former "3P040WP-HX-4775-M-tr"
This product has been changed to "3P040WP-HV-BK-M-tr".
Please note that the shape, etc. has not changed from the previous one.
Brand： Sumitomo Wiring Systems
Series：HV/HVG waterproofing series
Standard size：040
Hue：Black
Gender：Male
Number of Positions：Waterproofing 3 Position
Terminal / Wire seal：selling separately
Corresponding terminals separately prepare it as follows.
Please find necessary amount.
In addition, it is available as a spare for the repair.
◆F side connector（No terminals)
"3P040WP-HV-BK-F-tr"
■M terminal（0.75-1.25㎟） + wire seal（M size）
"M040WP-HX"
for AVS0.75-0.85mm2
■M terminal（0.3-0.5㎟） + wire seal（M size）
"M040WP-HX-HV0305-M"
for AVS0.5mm2
■M terminal（0.3-0.5㎟） + wire seal（SS size）
"M040WP-HX-HV0305-SS"
for AVSS/AVSSB/AVSSC/0.3mm2
■M terminal individually
"M040WP-HX-wr"
for 0.75-1.25㎟
■M terminal individually
"M040WP-HX-HV0305-wr"
for 0.3-0.5㎟
■Wire seal（M size）
"WS7165-0622HX-MV"
for 1.8-2.2mm
■Wire seal（SS size）
"WS7165-1075-HX-HV-OR"
for 1.1-1.6mm
■Dummy plug
"DP7165-0432-BK"
Please use without terminals.
Please buy the M terminal, the wire seal and dummy plug are separately.
In addition, the F side connector is not included, too.
please buy it separately.
*Due to the change in the manufacturer series name, the former "3P040WP-HX-4775-M-tr"
This product has been changed to "3P040WP-HV-BK-M-tr".
Please note that the shape, etc. has not changed from the previous one.
Brand： Sumitomo Wiring Systems
Series：HV/HVG waterproofing series
Standard size：040
Hue：Black
Gender：Male
Number of Positions：Waterproofing 3 Position
Terminal / Wire seal：selling separately
Corresponding terminals separately prepare it as follows.
Please find necessary amount.
In addition, it is available as a spare for the repair.
◆F side connector（No terminals)
"3P040WP-HV-BK-F-tr"
■M terminal（0.75-1.25㎟） + wire seal（M size）
"M040WP-HX"
for AVS0.75-0.85mm2
■M terminal（0.3-0.5㎟） + wire seal（M size）
"M040WP-HX-HV0305-M"
for AVS0.5mm2
■M terminal（0.3-0.5㎟） + wire seal（SS size）
"M040WP-HX-HV0305-SS"
for AVSS/AVSSB/AVSSC/0.3mm2
■M terminal individually
"M040WP-HX-wr"
for 0.75-1.25㎟
■M terminal individually
"M040WP-HX-HV0305-wr"
for 0.3-0.5㎟
■Wire seal（M size）
"WS7165-0622HX-MV"
for 1.8-2.2mm
■Wire seal（SS size）
"WS7165-1075-HX-HV-OR"
for 1.1-1.6mm
■Dummy plug
"DP7165-0432-BK"
Please use without terminals.
●[sumitomo] 040 type HV/HVG [waterproofing] series 3 pole M side connector, it is (no terminals) /3P040WP-HV-BK-M-tr
[3P040WP-HV-BK-M-tr]
Price: US$4.60
Weight: 15g
Stock:109
