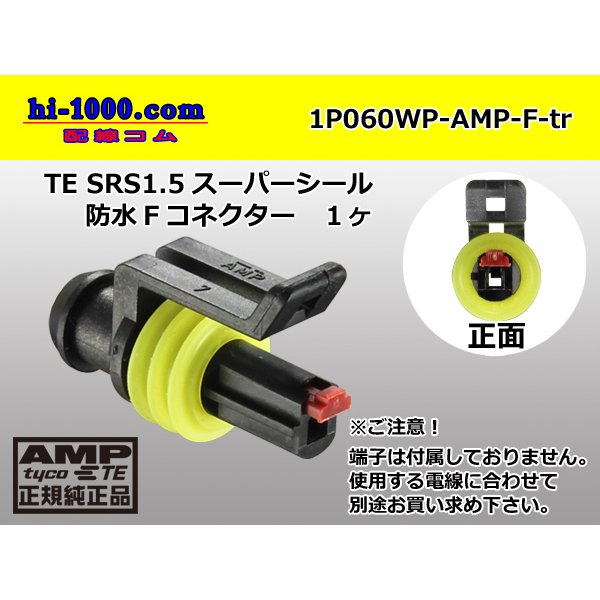

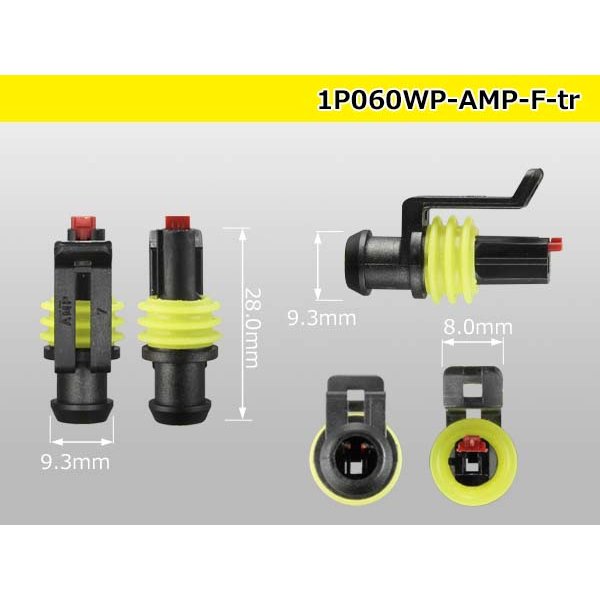

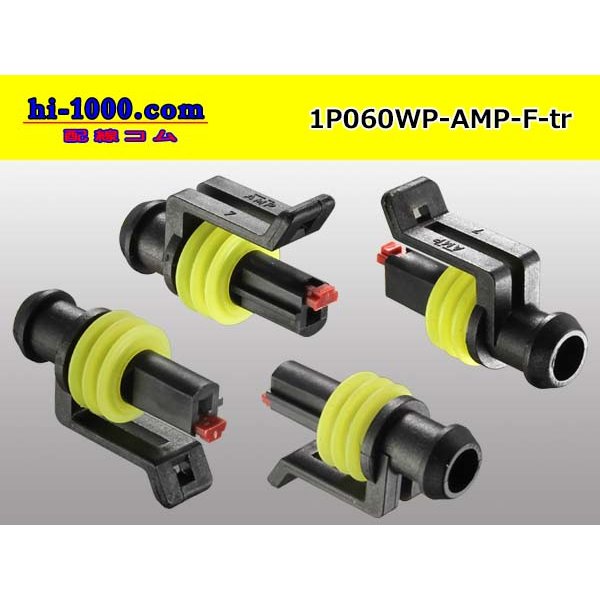

●[TE]060 type SRS1.5 super seal waterproofing 1 pole F connector(no terminals) /1P060WP-AMP-F-tr [1P060WP-AMP-F-tr]

This product is only the F side connector. Please buy F terminal, the wire seal separately.
In addition, the M side of the counterpart is not included, too; please buy it separately.

Corresponding terminals separately prepare it as follows.
Please find necessary amount
In addition, it is available as a spare for the repair.

In the case of use, please choose this by an electric wire of AVSS0.3mm2.
■F terminal (small size) + wire seal (small size)
"F060WP-AMP-03505"
＊Please find the necessary number

In the case of use, please choose this by an electric wire of AVS0.75/AVSS1.25mm2.
■F terminal (medium size) + wire seal (medium size)
"F060WP-AMP-07515"
＊Please find the necessary number

In the case of use, please choose this by an electric wire of AVS/AVSS2.0mm2.
■F terminal (large size) + wire seal (large size)
"F060WP-AMP-1525"
＊Please find the necessary number

■F terminal (small size) simple substance 0.35-0.5mm2
"F060WP-AMP-03505-wr"
■F terminal (medium size) simple substance 0.75-1.5mm2
"F060WP-AMP-07515-wr"
■F terminal (large size) simple substance 1.5-2.5mm2
"F060WP-AMP-1525-wr"

■Wire seal (small size) light green
"WS-934-4-GRE"
Adaptation electric wire 1.2-1.6mm outside diameter
■Wire seal (medium size) yellow
"WS-934-2-YE"
Adaptation electric wire 1.7-2.4mm outside diameter
■A wire seal (large size) is red
"WS-934-3-RD"
Adaptation electric wire 1.59-3.3mm outside diameter

■Dummy stopper
"DP-SRS15-AMP"
＊It is necessary for the point without the terminal.
■After inserting a terminal in a connector, you come in, and please lock attached リテーナー.

A fitting counterpart is this
◆Only as for the connector
"1P060WP-AMP-M-tr"
