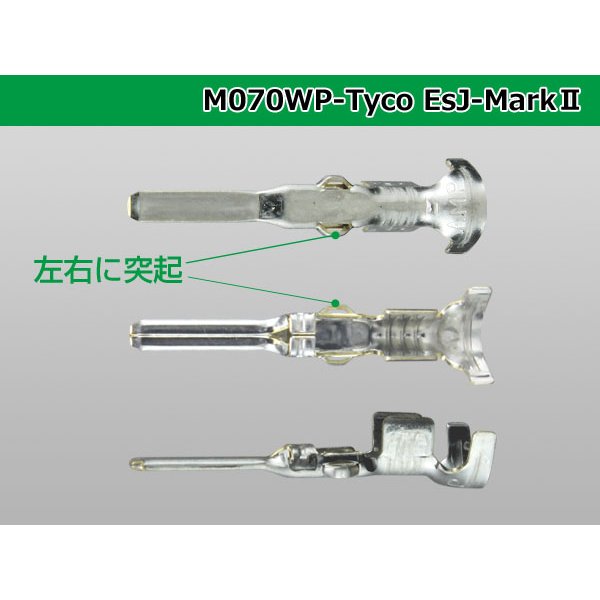

●[TE] 070 Type Econoseal J Series MarkII male [small size]/M070WP-Tyco-EsJ-Mark2-S [M070WP-Tyco-EsJ-Mark2-S]

This product is "a small size set product" of a terminal and the wire seal.
It adapts to the M side (the male side) connector of the Econoseal J series.

■Application electric wire range 0.2-0.5mm2 of the terminal
1.4-2.1mm outside diameter to insulation cover of the terminal
■Electric wire adaptation 1.4-2.1mm outside diameter φ of the wire seal

You can use AVSS/AVSSB/AVSSC0.3 AVSSB0.5/AVS0.5 by two points of combinations of
■I sell the simple substance.
●M terminal simple substance (small size)
"M070WP-Tyco-EsJ-Mark2-S-wr"

●Wire seal (small size)
"WS2822356-Tyco-EsJ-Mark2-S"
