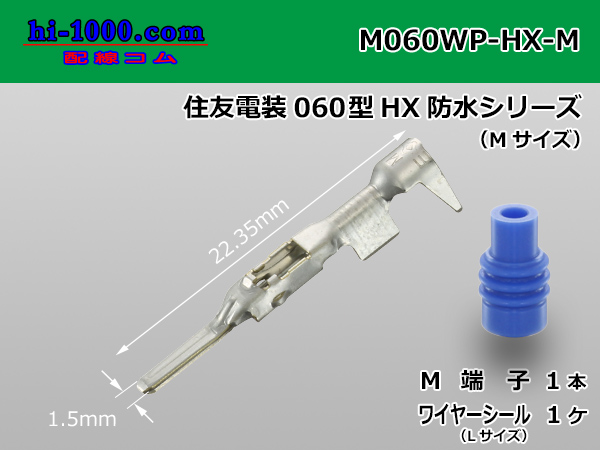

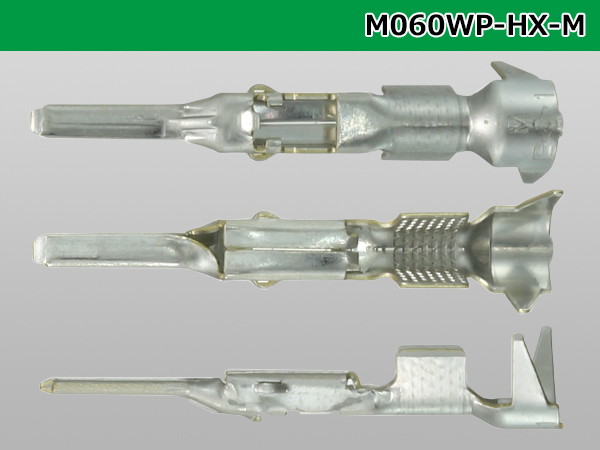

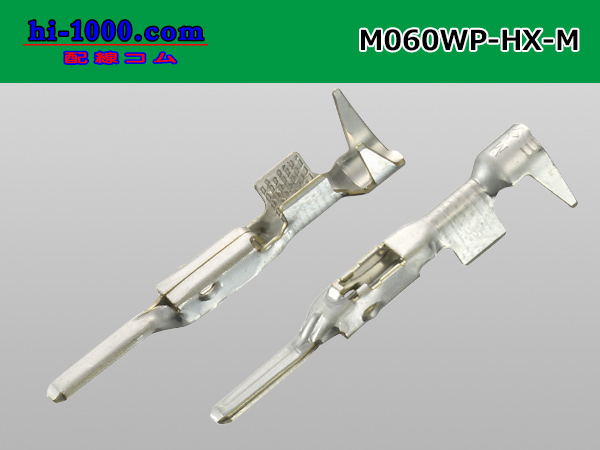

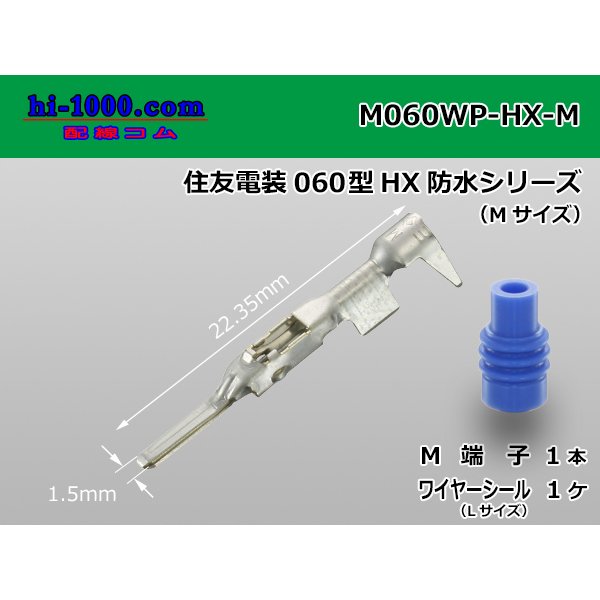

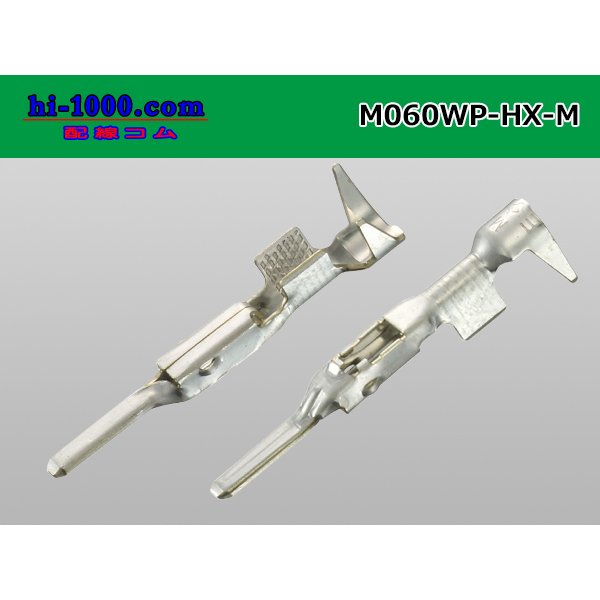

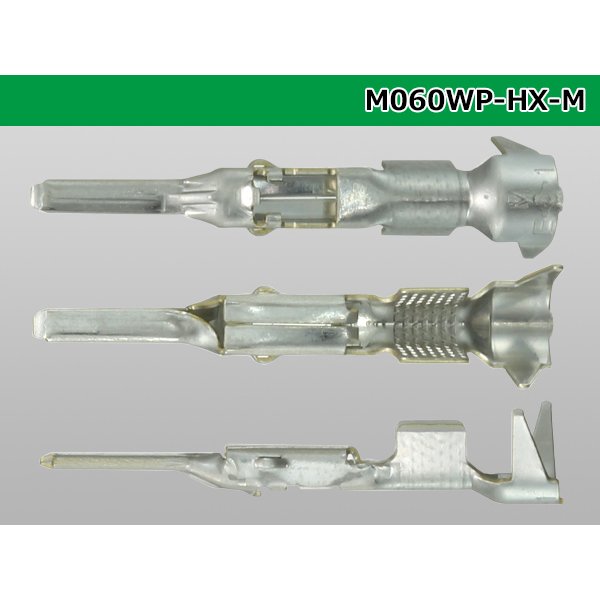

060 Tab Size Sealed Male Terminal – Size M – Sumitomo HX Sealed Series (With Size L Wire Seal) [M060WP-HX-M]

This product is a set that includes one female terminal and one wire seal.
Please purchase the required quantity.

---

[ Product Details ]
Brand：Sumitomo Wiring Systems
Series：HX Sealed Series
Tab Size：060
Male/Female：Male
Sealed：Yes
Material：Brass
Surface Treatment：Tin plating
Wire Seal：Included Large Size(1 pc)
Applicable Wire Size：AVS0.75/AVSS1.25

---

Each item in this set is also sold separately.
If you would like to purchase them individually, please check the links below.

■Terminal Only
└"M060WP-HX-M-wr"
■Wire Seal Only
└"WS7165-1565HX-BL"

---

◆Recommended Crimping Tool
"P-706" "PA-20" "PAD-12"
Crimping guideline：（for AVS0.75 wire）
P-706：for the conductor 2.0L / for the Wire Seal Section φ4.0
PA-20：for the conductor 2.0
PAD-12：for the conductor 1.9-2.2
Please note that this is for reference only.
Actual results may vary depending on the wire used.
