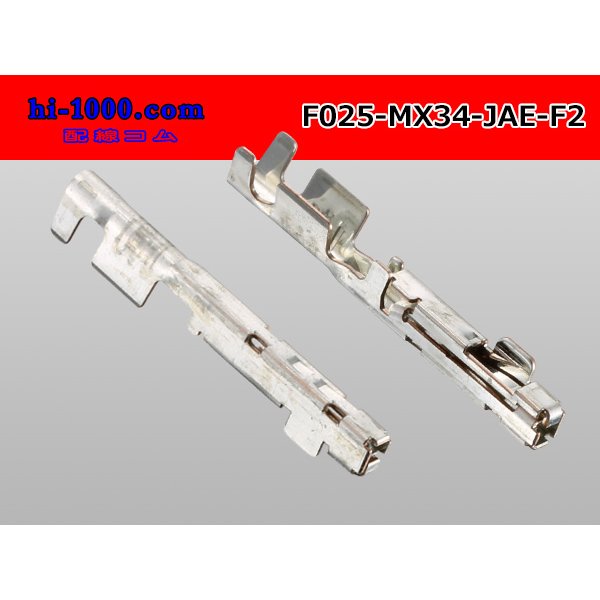

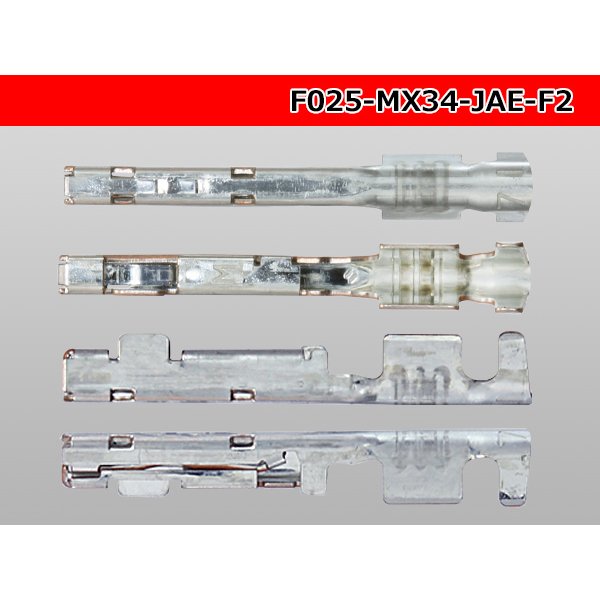

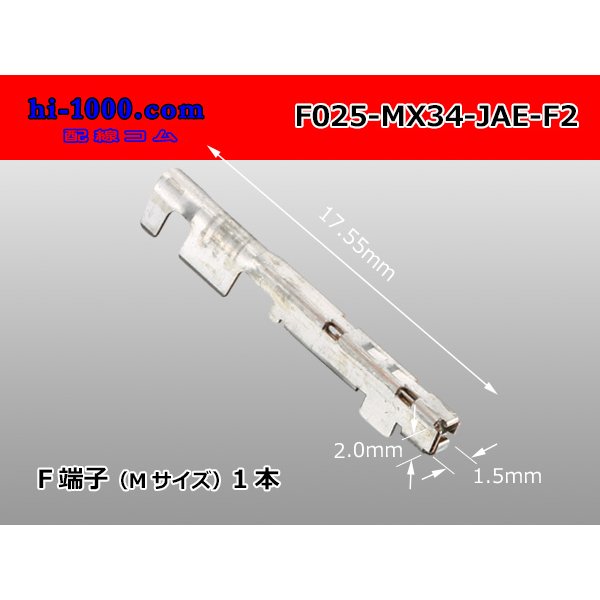

025 Tab Size Unsealed Female Terminal - JAE MX34 Series - Size Medium [F025-MX34-JAE-F2]

The price shown is for one female terminal.
Please purchase the required quantity.

---

[ Product Details ]
Brand：JAE Electronics
Series：MX34 Series
Tab Size：025
Male/Female：Female
Sealed：No
Material：High conductivity Copper alloy
Surface treatment：Tin plating
Applicable Wire Size：AVSS0.5mｍ2
Wire Outer Diameter：0.9-1.7mmφ
＊Compatible with AVSS 0.3 wires (equivalent to AWG 22) and similar types.

---

◆Recommended Crimping Tool
└"PAD-11" "P-706"
Crimping guideline：（for AVSS0.3 wire）
PAD-11…conductors portion：1.6 / coated portion：1.9
P-706…conductors portion：1.4 /coated portion：1.7L/1.7H
＊It's just a reference range.

---
