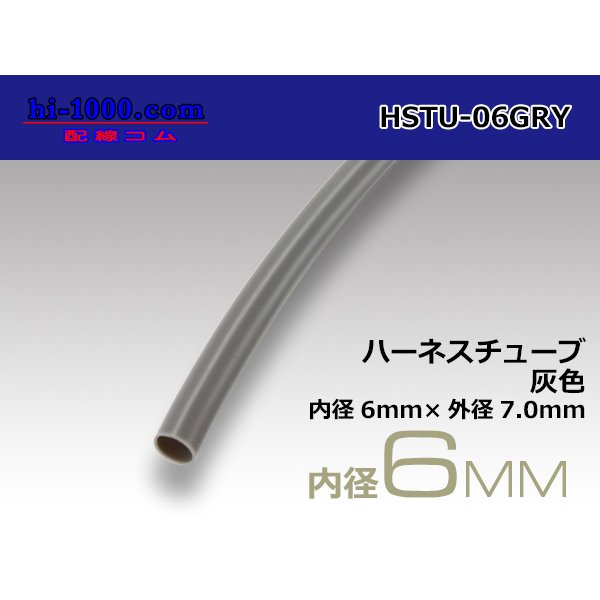

Harness tube Inner diameter 6 Φ [color Gray] 1m(6.0x7.0)/HSTU-06GRY [HSTU-06GRY]

■ price is the price per 1m. We will deliver it to your purchase quantity in the "connected state".

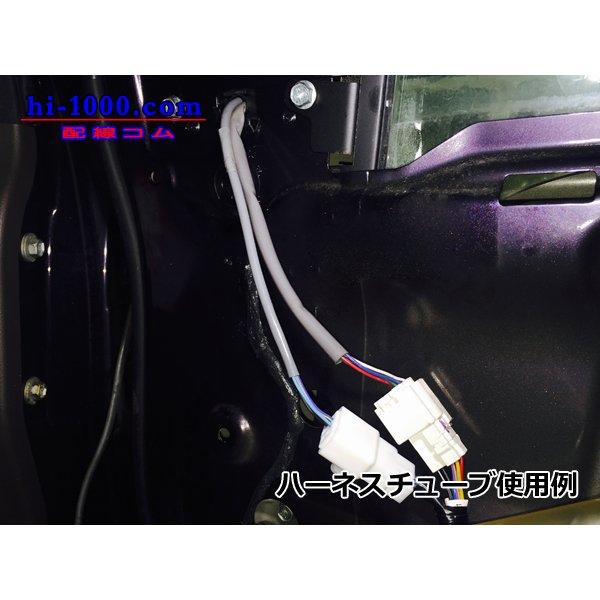

■ ideal have excellent flexibility to harness and the like made of a tube that vinyl chloride resin (PVC) was prepared by extrusion molding in the main raw material.
Item characteristics
cold resistance appearance does not cause cracks on the surface
test conditions - 20 ℃
tensile strength 14.7MPa more
beauty Shin 150% or more
aging test tensile strength retention of 90% or more
70% or more 70% or more
100 ℃ × 120hr 100 ℃ × 120hr
oil test tensile strength retention of 70%
residual rate of growth 70% or more
test conditions 2 No. insulating oil 70 ℃ × 4hr
flame retardant properties within 15 seconds self-extinguishing
heat resistance degenerative reduction rate within 10% of the thickness of
contractility 10% within the length reduction rate of
test conditions 120 ℃ × 1hr
insulation resistance < td align = "center"> 1,000MΩ ? m or more
withstand voltage 1 minute or more to 5,000V
Harness tube Inner diameter 6 Φ [color Gray] 1m(6.0x7.0)/HSTU-06GRY [HSTU-06GRY]

Price: US$1.25

Weight: 15g

Stock:143
