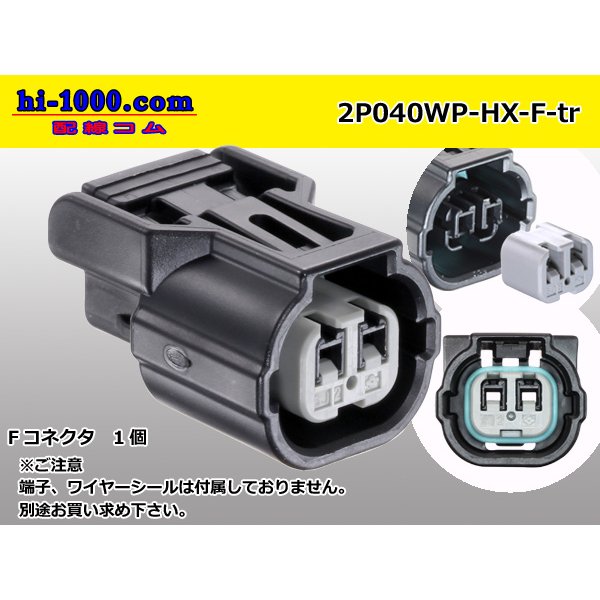

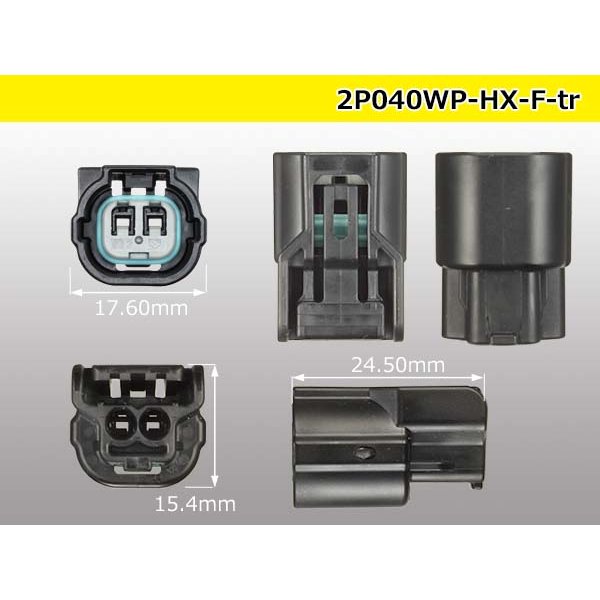

●[sumitomo] 040 type HX [waterproofing] series 2 pole F side connector [black] (no terminals)/2P040WP-HX-F-tr [2P040WP-HX-F-tr]

●[sumitomo] 040 type HX [waterproofing] series 2 pole F side connector [black] (no terminals)/2P040WP-HX-F-tr [2P040WP-HX-F-tr]

Price: US$3.45

Weight: 15g

Stock:119
Quantity:
This product is F side connector.
Please buy the F terminal, the wire seal and dummy plug are separately.
In addition, the M side connector is not included, too.
please buy it separately.


Brand: Sumitomo Wiring Systems
Series:HX waterproofing series
Standard size:040
Hue:Black
Gender:Female
Number of Positions:Waterproofing 2 Position
Terminal / Wire seal:selling separately


Corresponding terminals separately prepare it as follows.
Please find necessary amount.
In addition, it is available as a spare for the repair.



◆M side connector(No terminals)
"2P040WP-HX-M-tr"

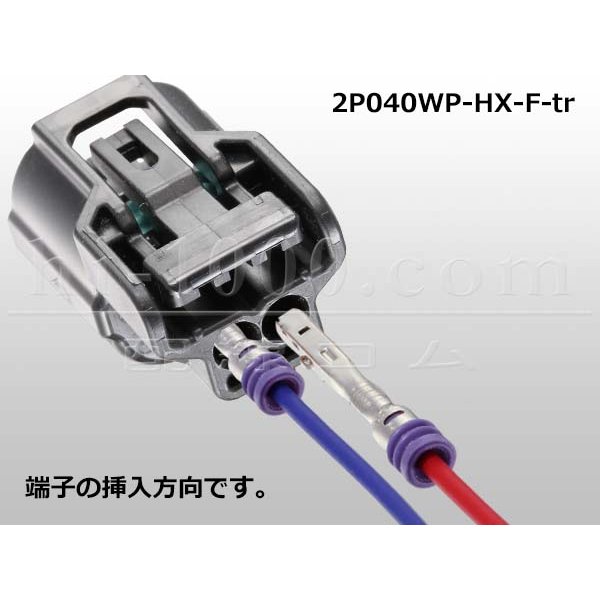

■F terminal(0.75-1.25㎟) + wire seal(M size)
"F040WP-HX"
for AVS0.75-0.85mm2

■F terminal(0.3-0.5㎟) + wire seal(M size)
"F040WP-HX-HV0305-M"
for AVS0.5mm2

■F terminal(0.3-0.5㎟) + wire seal(SS size)
"F040WP-HX-HV0305-SS"
for AVSS/AVSSB/AVSSC/0.3mm2

■F terminal individually
"F040WP-HX-wr"
for 0.75-1.25㎟

■F terminal individually
"F040WP-HX-HV0305-wr"
for 0.3-0.5㎟

■Wire seal(M size)
"WS7165-0622HX-MV"
for 1.8-2.2mm

■Wire seal(SS size)
"WS7165-1075-HX-HV-OR"
for 1.1-1.6mm

■Dummy plug
"DP7165-0432-BK"
Please use without terminals.
