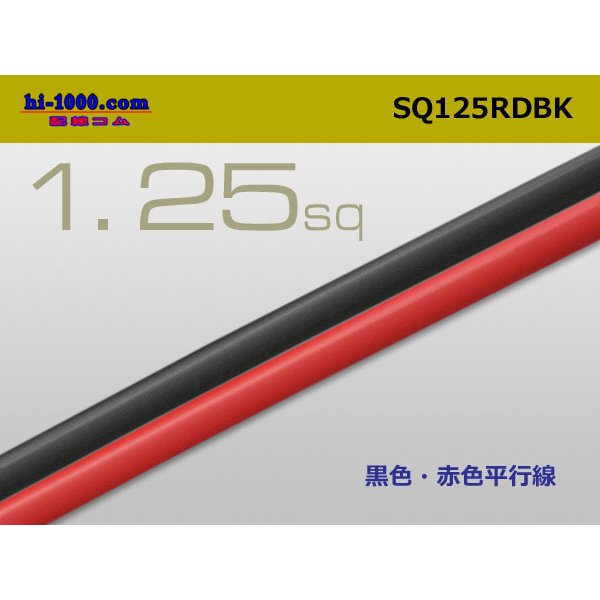

●1.25sq parallel lines - [color Red / Black] (1m)/SQ125RDBK [SQ125RDBK]

A price is a price around 1m.
An example: When 10 meters are necessary, please input with "10" to the number of the purchase.
I send it in "a connected state" to the purchase amount.
But the upper limit becomes number of the stock or 100m as 1 reel becomes 100m.

Use Other than an industrial instrument, the radio for the duties for the home, an acoustic electric wire car audio, a car, a ship
Characteristic It is available for a wide apparatus

Use It is used for wiring of various low voltage in the car
Characteristic I am superior in oil-resistant, cold-proof, wear resistance to endure the use by car.

The product details
Standard size (mm2) 0.75
Number of the wires/wire diameter (this /mm) 30/0.18
Conductor cross section (mm2) 0.75
Conductor outer diameter (mm) 1.1
Insulator thickness (mm) 0.8
Finish outer diameter (mm) 2.7x5.4
Conductor resistance Ω/Km (20 degrees Celsius) 24.4
Current tolerance (A) Maker notation nothing
Breakdown voltage AC3000V/1 minute
(in 0.3m㎡ AC 1,000V/one minute)
Insulation resistance 50MΩ, Km (20 degrees Celsius)
