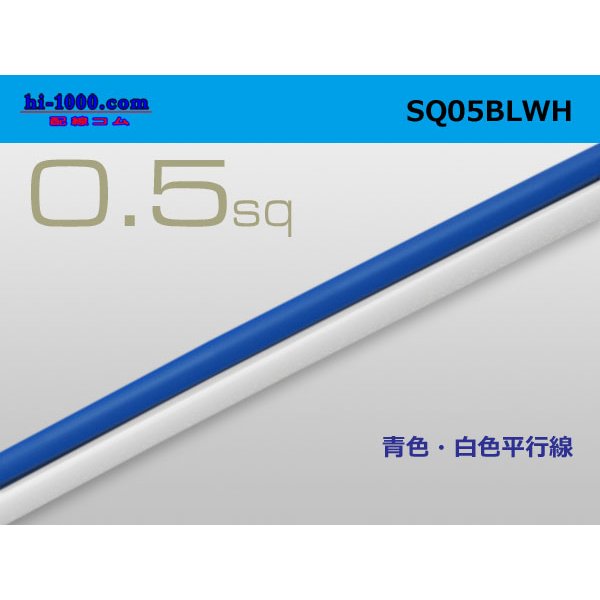

●0.5sq parallel lines - [color Blue / White] (1m)/SQ05BLWH [SQ05BLWH]

●0.5sq parallel lines - [color Blue / White] (1m)/SQ05BLWH [SQ05BLWH]

Price: US$1.64

Weight: 23g

Stock:67
Quantity:
A price is a price around 1m.
An example: When 10 meters are necessary, please input with "10" to the number of the purchase.
I send it in "a connected state" to the purchase amount.
But the upper limit becomes number of the stock or 100m as 1 reel becomes 100m.

Use Other than an industrial instrument, the radio for the duties for the home, an acoustic electric wire car audio, a car, a ship
Characteristic It is available for a wide apparatus

The product details
Standard size (mm2) 0.5
Number of the wires/wire diameter (this /mm) 20/0.18
Conductor cross section (mm2) 0.5
Conductor outer diameter (mm) 0.9
Insulator thickness (mm) 0.8
Finish outer diameter (mm) 2.5x5.0
Conductor resistance Ω/Km (20 degrees Celsius) 36.7
Current tolerance (A) Maker notation nothing
Breakdown voltage AC3000V/1 minute
(in 但 0.3m㎡ AC 1,000V/one minute)
Insulation resistance 50MΩ, Km (20 degrees Celsius)
