■[Yazaki] 040 Type F terminal Non waterproof / F040 [F040]

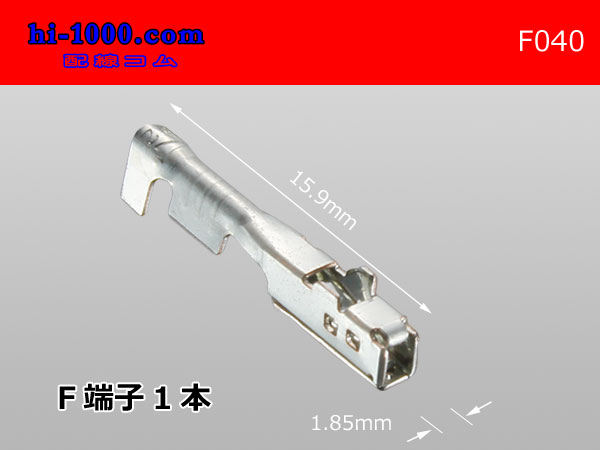

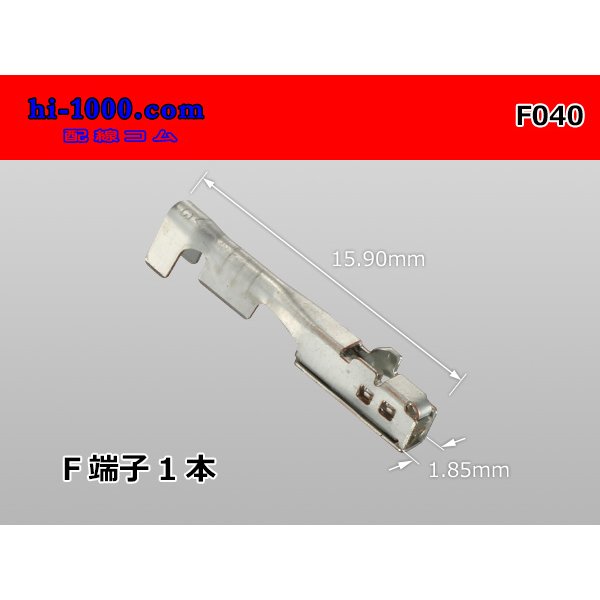

![Photo1: ■[Yazaki] 040 Type F terminal Non waterproof / F040](https://www.hi-1000ec.com/data/hi-1000/product/20231116_4f959e.jpg)

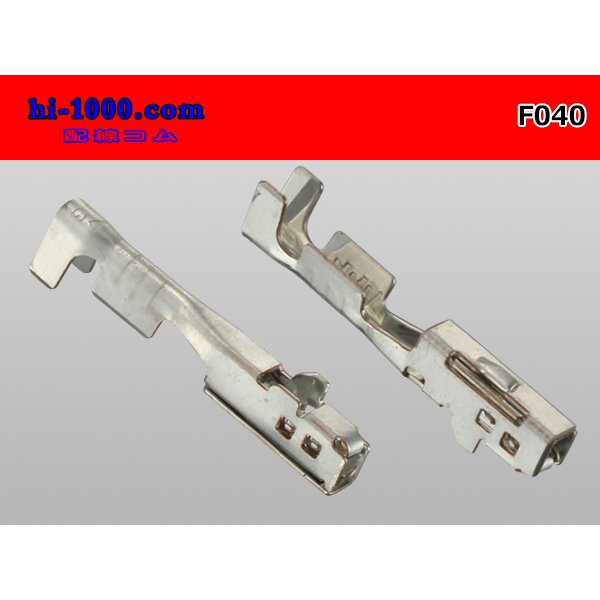

![Photo2: ■[Yazaki] 040 Type F terminal Non waterproof / F040](https://www.hi-1000ec.com/data/hi-1000/product/20231116_721cdd.jpg)

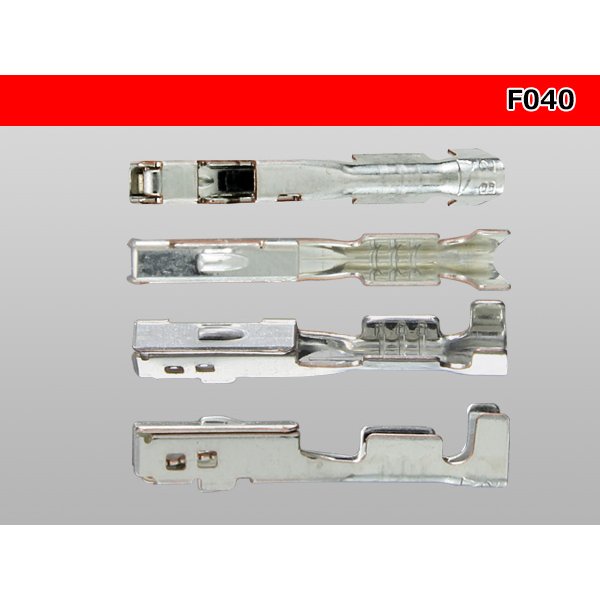

![Photo3: ■[Yazaki] 040 Type F terminal Non waterproof / F040](https://www.hi-1000ec.com/data/hi-1000/product/20231116_25c327.jpg)
■[Yazaki] 040 Type F terminal Non waterproof / F040
[F040]
Price: US$0.21
Weight: 1g
Stock:6,112
This product is Yazaki 040 type 1.0III(040III) series the F side terminal.
Price is for 1 terminal.
Toyota genuine part number 82998-12690 equivalency product.
（82998-12880 has the same shape, but is the "gold-plated" part number of the terminal）
[ commodity details ]
Brand： Yazaki
Series：1.0III(040III) series
Tab Size：040
Gender：Female
Applicable wire size：0.3-0.5mm2
Cable overall diameter：1.4-2.1mm
◆Recommended Crimp Tool
"PAD-11" , "PA-09" and "P-706"
Yardstick for crimping
"PAD-11" conductors portion：1.6 / coated portion：1.6
"P-706" conductors portion：1.4 / coated portion：1.7L
＊It's just a reference range.
Even if the outer diameter of the wire coating is within the range, crimping may fail if it is too close to the outer diameter.
We recommend the use of wires with as thin a coating as possible (e.g., "CAVS0.5" or "AVSSB0.5" for 0.5 mm2).
Price is for 1 terminal.
Toyota genuine part number 82998-12690 equivalency product.
（82998-12880 has the same shape, but is the "gold-plated" part number of the terminal）
[ commodity details ]
Brand： Yazaki
Series：1.0III(040III) series
Tab Size：040
Gender：Female
Applicable wire size：0.3-0.5mm2
Cable overall diameter：1.4-2.1mm
◆Recommended Crimp Tool
"PAD-11" , "PA-09" and "P-706"
Yardstick for crimping
"PAD-11" conductors portion：1.6 / coated portion：1.6
"P-706" conductors portion：1.4 / coated portion：1.7L
＊It's just a reference range.
Even if the outer diameter of the wire coating is within the range, crimping may fail if it is too close to the outer diameter.
We recommend the use of wires with as thin a coating as possible (e.g., "CAVS0.5" or "AVSSB0.5" for 0.5 mm2).
■[Yazaki] 040 Type F terminal Non waterproof / F040
[F040]
Price: US$0.21
Weight: 1g
Stock:6,112
