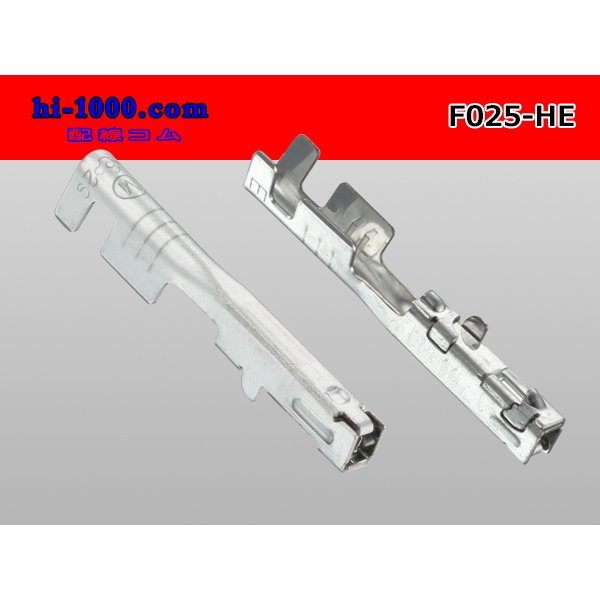

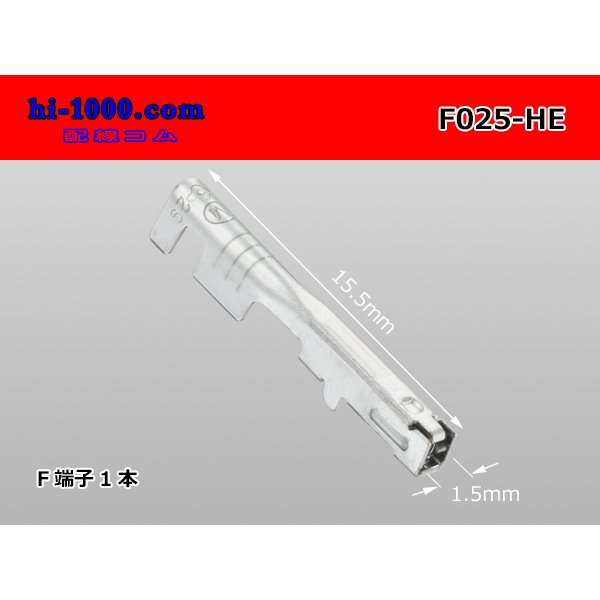

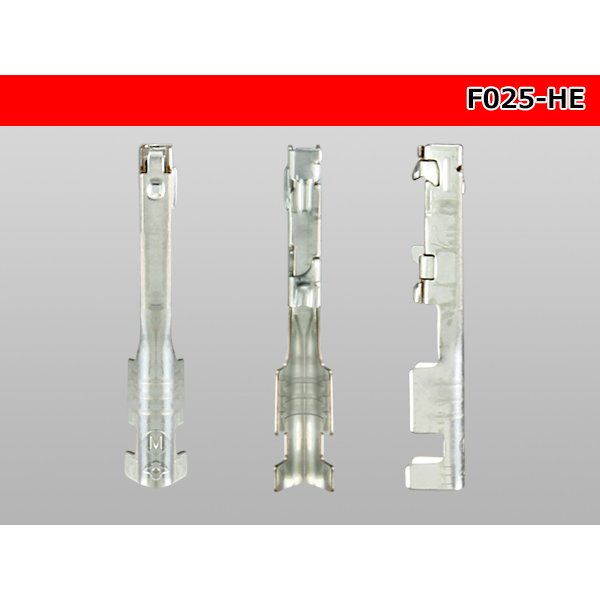

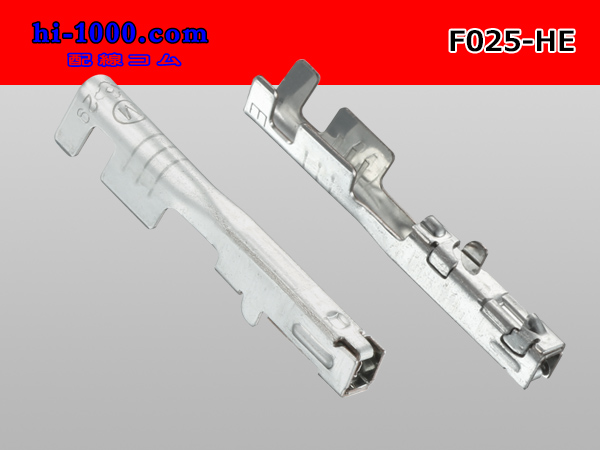

■[sumitomo]025 model HE series F terminal (medium size) /F025-HE [F025-HE]
![Photo1: ■[sumitomo]025 model HE series F terminal (medium size) /F025-HE](https://www.hi-1000ec.com/data/hi-1000/product/20231116_cc6f0b.jpg)
![Photo2: ■[sumitomo]025 model HE series F terminal (medium size) /F025-HE](https://www.hi-1000ec.com/data/hi-1000/product/20231116_ba24a1.jpg)
![Photo3: ■[sumitomo]025 model HE series F terminal (medium size) /F025-HE](https://www.hi-1000ec.com/data/hi-1000/product/20231116_4580da.jpg)
■[sumitomo]025 model HE series F terminal (medium size) /F025-HE
[F025-HE]
Price: US$0.12
Weight: 1g
Stock:13,243
This product is Sumitomo Wiring Systems 025 type HE series the F side terminal.
Price is for 1 terminal.
[ commodity details ]
Brand： Sumitomo Wiring Systems
Series：HE series
Tab Size：025
Gender：Female
material：Heat-resistant copper alloy
Surface treatment：Tin-plated
Applicable wire size：0.5-0.75sq
Cable overall diameter：1.25-1.6mm
◆Recommended Crimp Tool
"PAD-11" , "P-706"
Yardstick for crimping
"PAD-11" conductors portion：1.9 / coated portion：2.2
"P-706" conductors portion：1.4-1.7 / coated portion：1.7L
＊It's just a reference range.
*Even if the wire to be used is within the "Cable overall diameter" range,
it may be difficult to insert the wire depending on the connector used or the type of wire.
Price is for 1 terminal.
[ commodity details ]
Brand： Sumitomo Wiring Systems
Series：HE series
Tab Size：025
Gender：Female
material：Heat-resistant copper alloy
Surface treatment：Tin-plated
Applicable wire size：0.5-0.75sq
Cable overall diameter：1.25-1.6mm
◆Recommended Crimp Tool
"PAD-11" , "P-706"
Yardstick for crimping
"PAD-11" conductors portion：1.9 / coated portion：2.2
"P-706" conductors portion：1.4-1.7 / coated portion：1.7L
＊It's just a reference range.
*Even if the wire to be used is within the "Cable overall diameter" range,
it may be difficult to insert the wire depending on the connector used or the type of wire.
