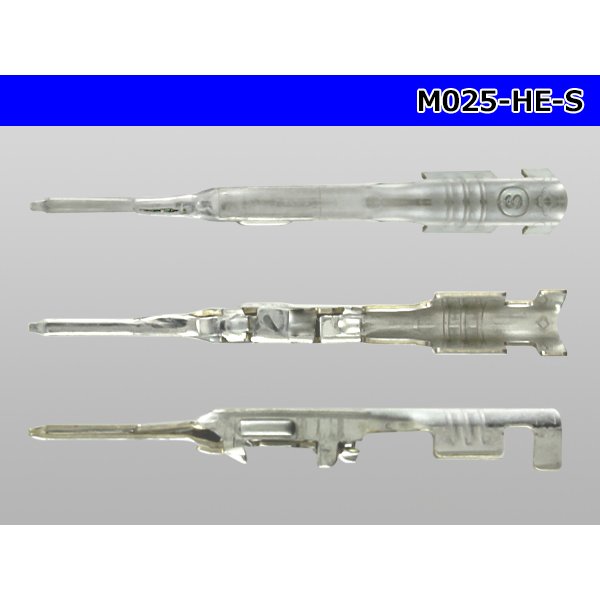

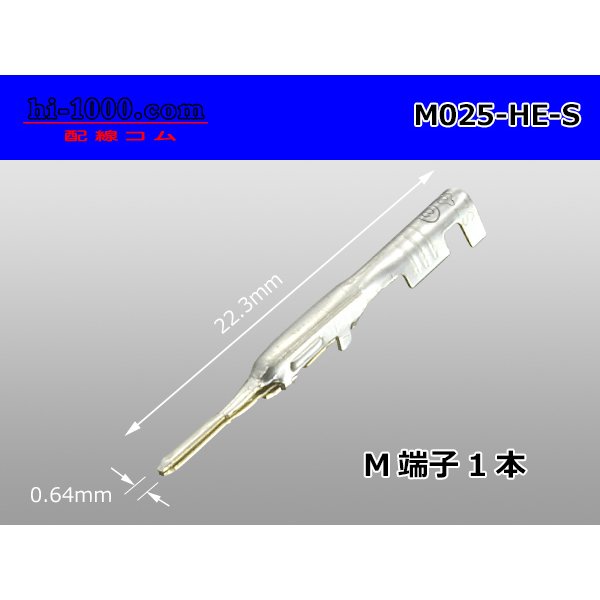

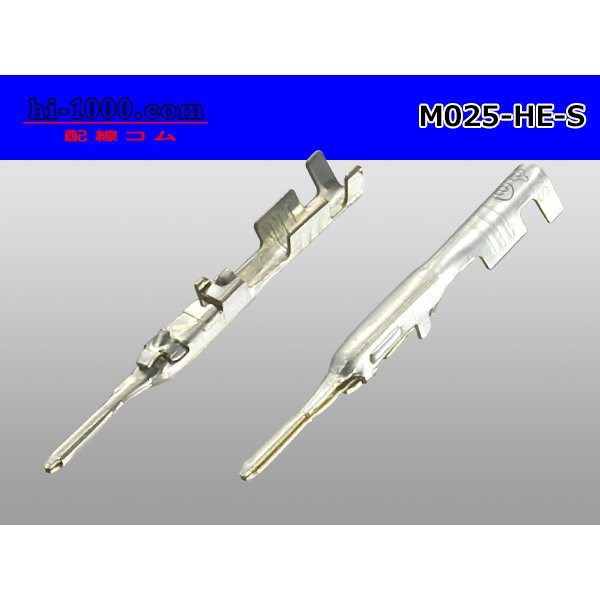

025 Tab Size Unsealed Male Terminal - Sumitomo HE Series - Size Small [M025-HE-S]

This product is a Sumitomo Wiring Systems 025 Tab Size HE series male terminal.
(It is also compatible with the 025 DL Series.)
Price is for 1 terminal.

---

[ Product Details ]
Brand： Sumitomo Wiring Systems
Series：HE series / DL series
Tab Size：025
Male/Female：Male
Material：Brass
Surface Treatment：Tin-plated
Applicable wire size：0.22-0.35mm2
Cable Overall Diameter：0.95-1.4mm

---

◆Recommended Crimping Tool
"PAD-11" "P-706"
Crimping guideline：（for AVS0.5f wire）
PAD-11 - conductors portion：1.3 / coated portion：1.6
P-706 - conductors portion：1.4 / coated portion：1.7L
＊It's just a reference range.

---
