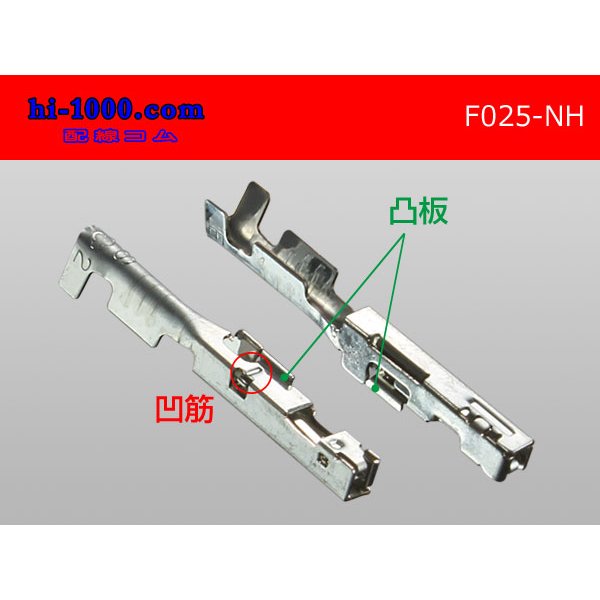

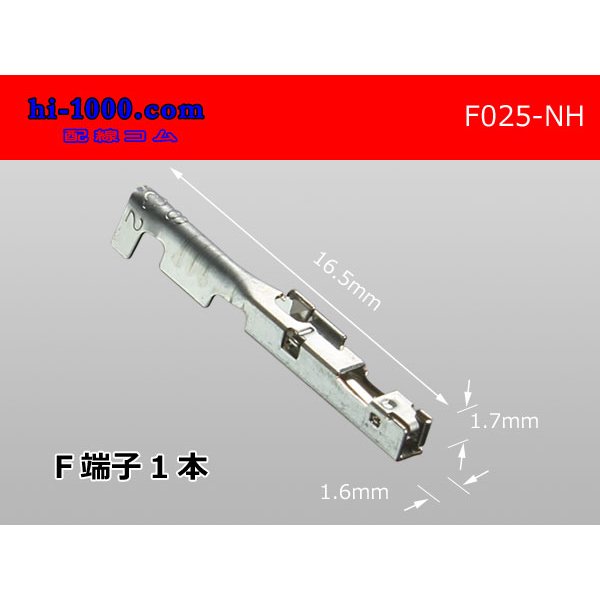

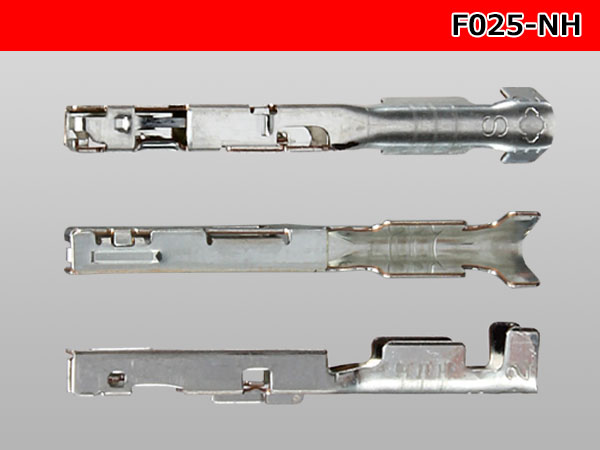

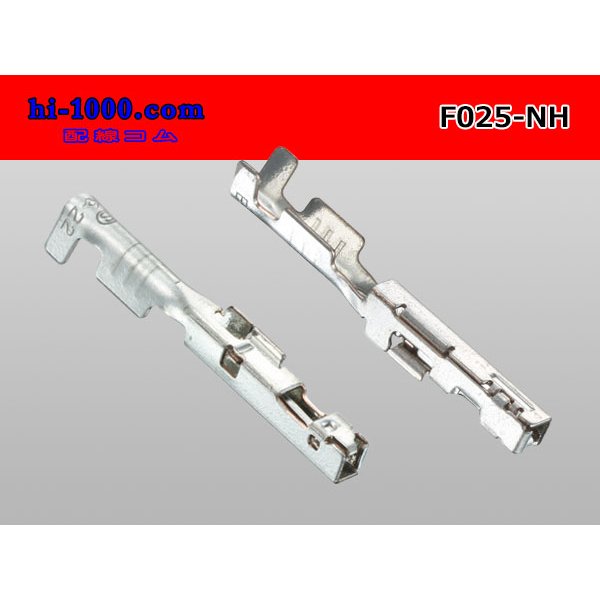

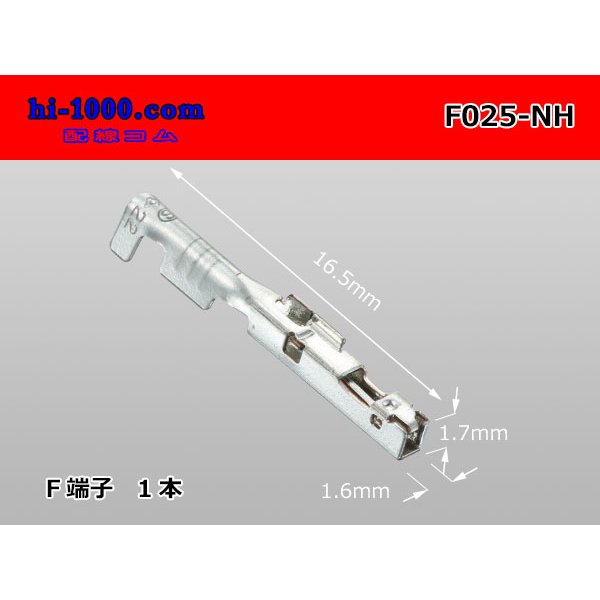

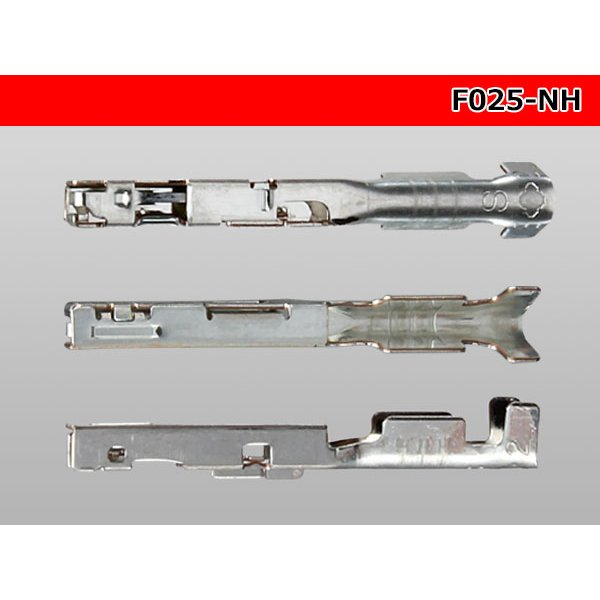

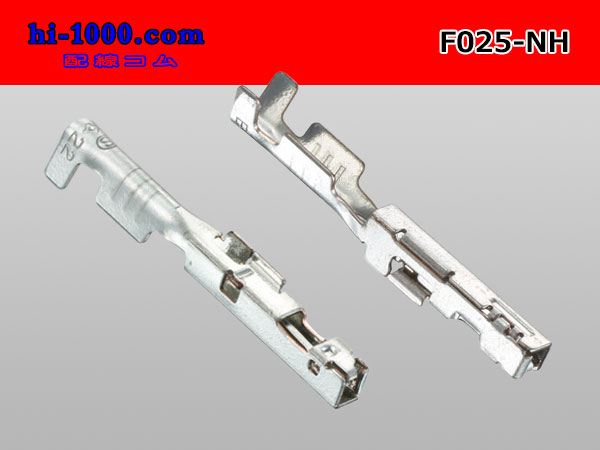

025 Tab Size Unsealed Female Terminal - Sumitomo NH Series [F025-NH]

This product is Sumitomo Wiring Systems 025 type NH-Series the female-side terminal.
Price is for 1 terminal.

---

[ Product Details ]
Brand： Sumitomo Wiring Systems
Series：NH Series
Tab Size：025
Male/Female：Female
Material：Heat-resistant copper alloy
Surface Treatment：Tin-plated
Applicable wire size：0.22-0.5mm2

---

◆Recommended Crimping Tool
"P-706" "PA-09" "PA-20"
Crimping guideline：（for AVSS0.3 wire）
P-706：for the conductor Section 1.4 / for the Coating Section1.7L
PA-09：for the conductor Section 1.6 / for the Coating Section1.9
PA-20：for the conductor Section 1.6 / for the Coating Section1.9
Please note that this is for reference only.
Actual results may vary depending on the wire used.

*Note on Crimping Work
When using this product with a 0.5 sq wire,
please be aware that it is at the upper limit of the applicable wire size range.
Depending on the crimping result,
the terminal may become difficult to insert into the connector.
Please take extra care during assembly.

---
