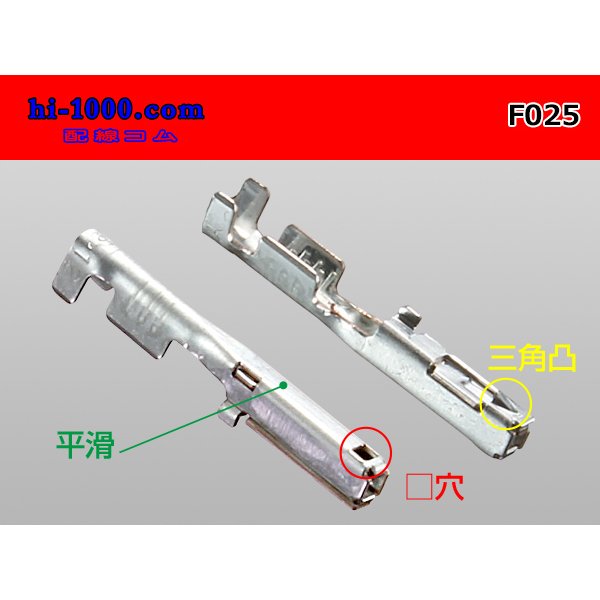

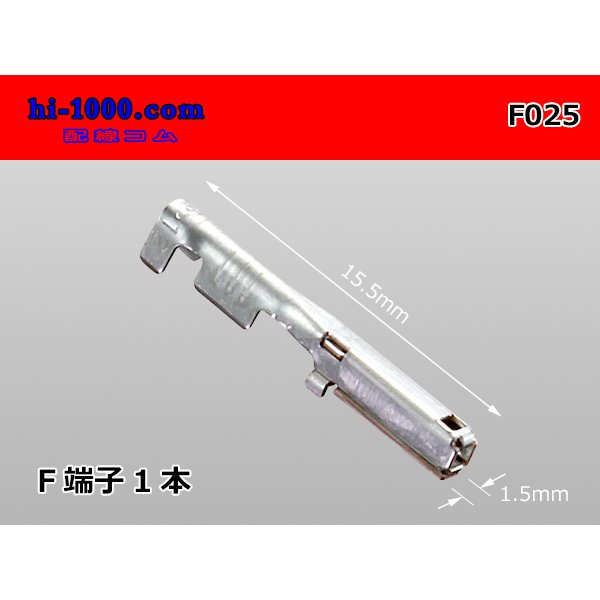

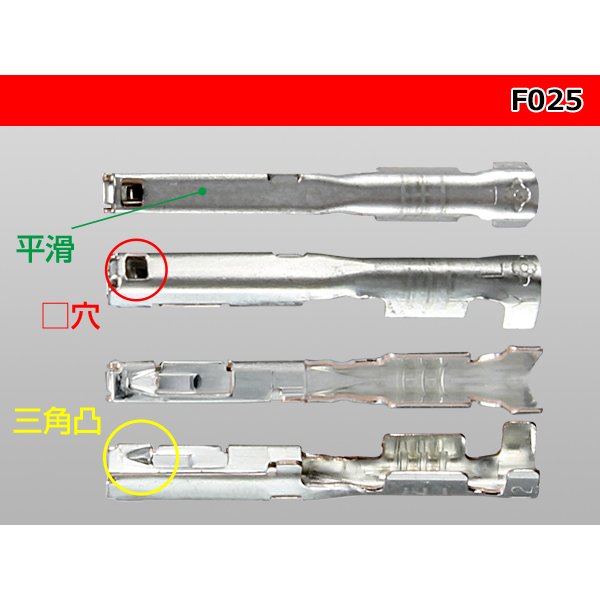

025 Tab Size Unsealed Female Terminal - Sumitomo TS Series [F025]

This product is Sumitomo Wiring Systems 025 type 0.64II（025II） series the female-side terminal.
Price is for 1 terminal.

Equivalent to Toyota Genuine Part No. 82998-24290.
（Part numbers 82998-24300 and 82998-24390 also have the same shape as this, but these terminals are gold-plated.）

---

[ Product Details ]
Brand： Sumitomo Wiring Systems
Series：0.64II（025II） series
Tab Size：025
Male/Female：Female
Material：Brass
Surface Treatment：Tin-plated
Applicable wire size：0.3-0.5mm2
Cable Overall Diameter：1.1-1.7mm


*Even if the wire to be used is within the "Cable overall diameter" range,
it may be difficult to insert the wire depending on the connector to be used.
In such cases, use pliers or the like to reduce the transverse width of the coated portion after caulking.

---

◆Recommended Crimp Tool
└"PAD-11"
Yardstick for crimping
conductors portion：1.6 / coated portion：1.9（for AVS0.5f）
＊It's just a reference range.

---
