■[SWS] 025 Type TS series Non-waterproof M terminal /M025 [M025]

■[SWS] 025 Type TS series Non-waterproof M terminal /M025 [M025]

Price: US$0.24

Weight: 1g

Stock:7,575
Quantity:

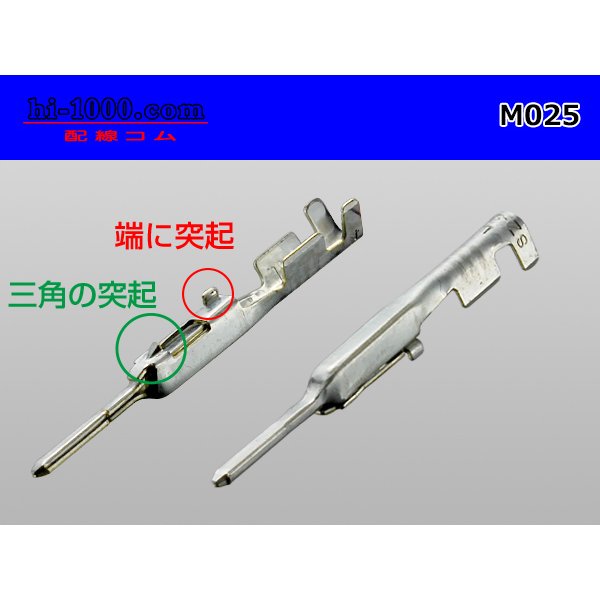

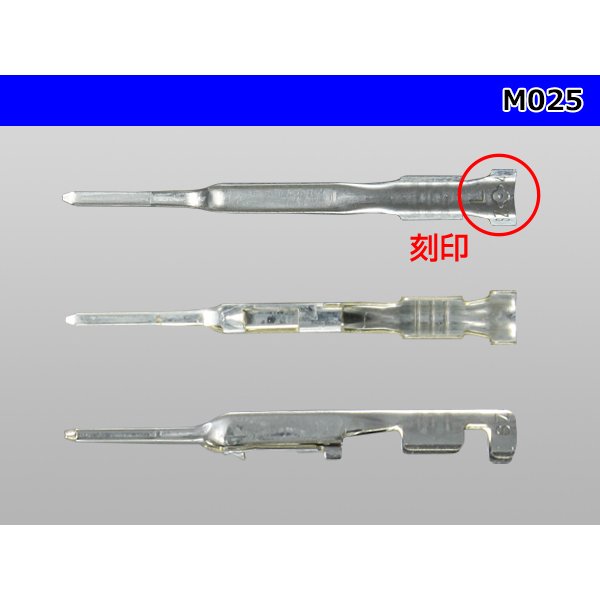

This product is Sumitomo Wiring Systems 025 type 0.64II(025II) series the M side terminal.
Price is for 1 terminal.
Toyota genuine part number 82998-24270 equivalency product

[ commodity details ]
Brand: Sumitomo Wiring Systems
Series:0.64II(025II) series

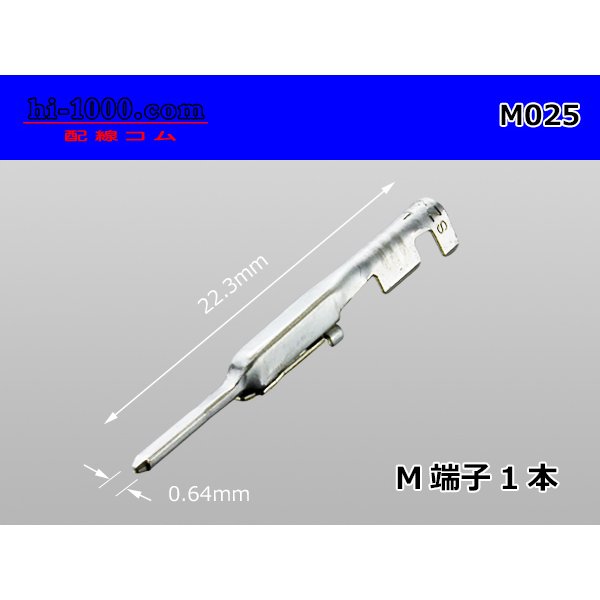

Tab Size:025
Gender:Male
material:Brass
Surface treatment:Tin-plated
Applicable wire size:0.3-0.5mm2
Cable overall diameter:1.1-1.7mm

*Even if the wire to be used is within the "Cable overall diameter" range,
it may be difficult to insert the wire depending on the connector to be used.
In such cases, use pliers or the like to reduce the transverse width of the coated portion after caulking.



◆Recommended Crimp Tool
"PAD-11"
Yardstick for crimping
conductors portion:1.6 / coated portion:1.9(for AVS0.5f)
*It's just a reference range.
