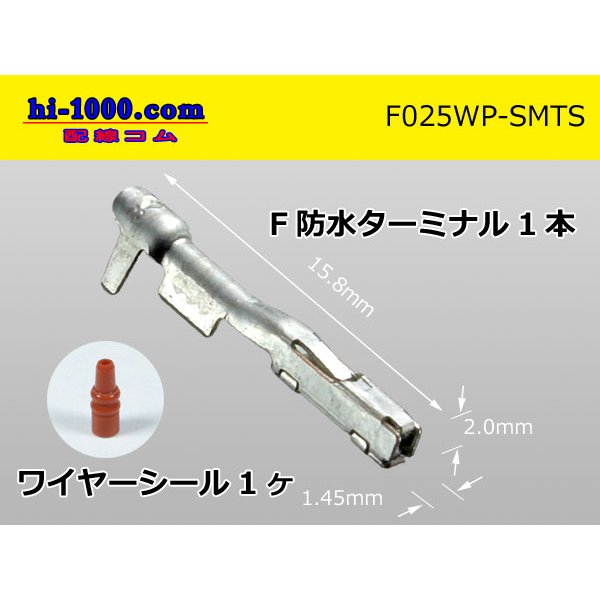

■[Sumitomo] 025 type TS waterproof series F terminal (with a wire seal) / F025WP-SMTS [F025WP-SMTS]

This is a set of 025 type TS series waterproof female terminal and 1 wire seal.
Toyota genuine parts 82998-24250 equivalent
(82998-24260 has the same shape, but it is a "gold plated" terminal part number)

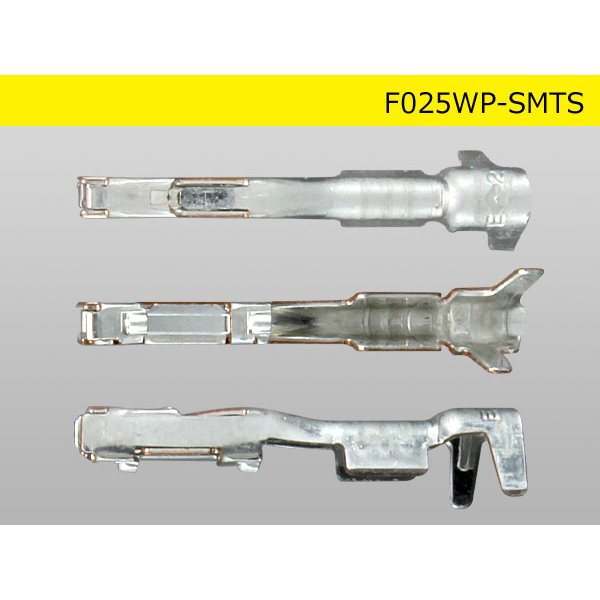

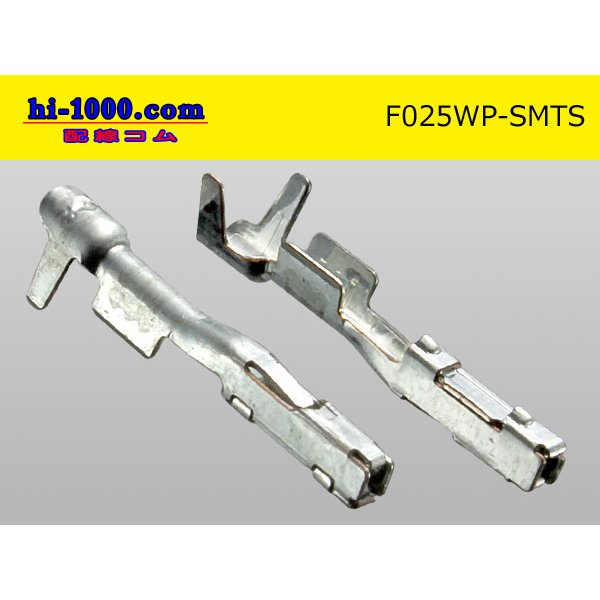

■ Terminal "F025WP-SMTS-wr"
　Applicable wire size of terminal 0.22-0.35mm2
■Wire seal "WS7165-0796-025TS"
　 　Wire finish outer diameter of wire seal 1.4-1.5 mm

AVSS/AVSSB/AVSSC0.3 electric wires are supported by combining the above two points.
