Price: per 100 m spool

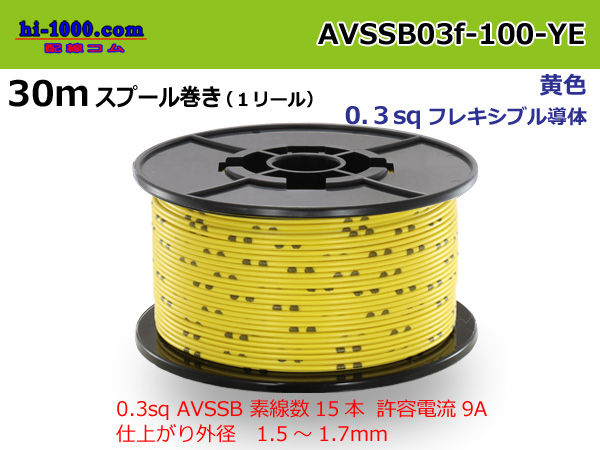

The wire will be delivered wound on a spool as shown in the product image.

APPLICATION

Wires used in low voltage circuits for automobiles (vehicles and motorcycles).

FEATURES

AVSSB wires have thinner insulation than CPAVS wires.

Heat Resistance Class

80℃
*The Heat resistance class defines the maximum allowable temperature of conductors when applying current for 10,000 hours cumulatively.

Brand：Sumitomo Wiring Systems
Series：AVSSB Very Thin PVC Insulated Low-voltage Copper Wires for Automobiles (Thinned CPAVS)
Size：0.3(f-type)
Construction(No./mm)：15/0.18
Calculated Area(mm2)：0.3817
Outer Diameter(mm)：0.8
Insulation Thickness(mm)：0.35
Overall Diameter(mm)：1.5-1.7

Permissible Current[A] （According to JASO D609）in case of 0.3(f)
Ambient temperature（℃） 20 30 40 50 60 70
Permissible Curren (A)　 11 10 9 7 6 4

*Permissible currents are the currents which the saturation temperatures of conductor up to allowed heat resisted temperatures under the each ambient temperatures.
*The current tolerance in the image is notation in case of ambient temperature 40 degrees.
