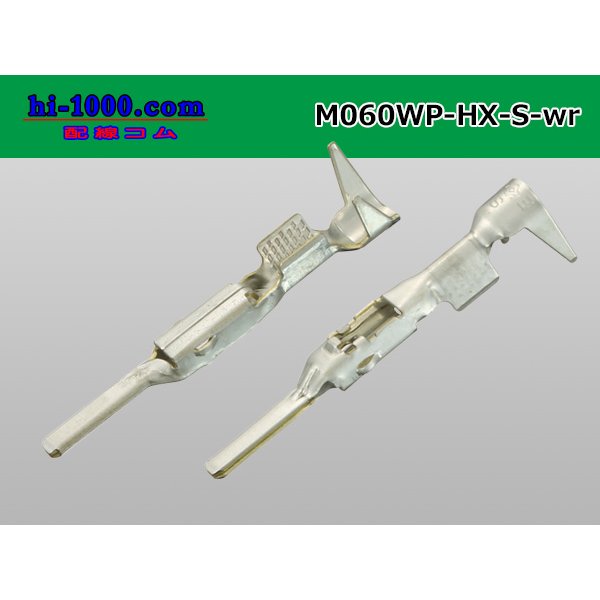

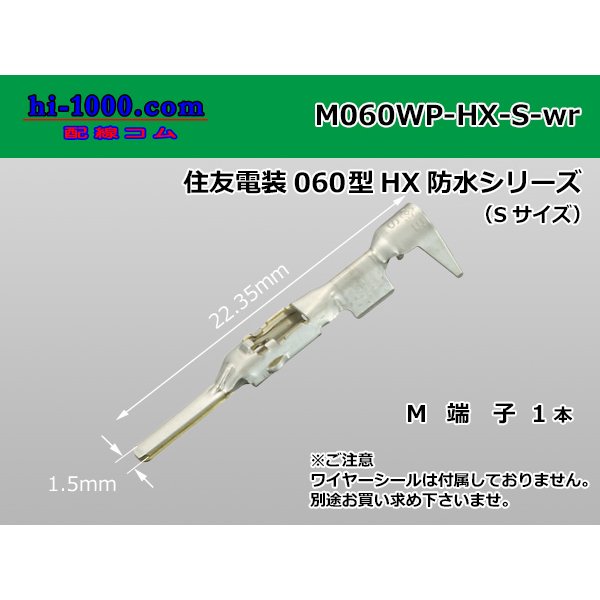

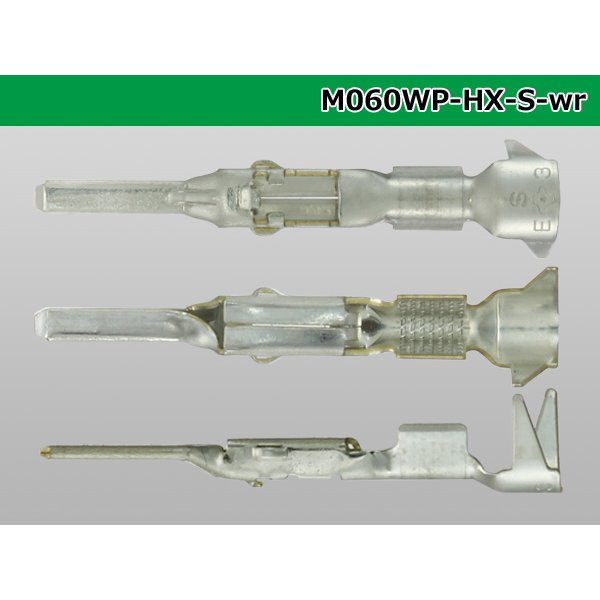

This product includes one sealed male terminal only.
Please purchase wire seal separately.

---

[ Product Details ]
Brand：Sumitomo Wiring Systems
Series：HX Sealed Series
Tab Size：060
Male/Female：Male
Sealed：Yes
Material：Brass
Surface Treatment：Tin plating
Wire Seal：Sold Separately
Applicable Wire Size：0.3-0.5mm2

---

■Compatible Wire Seals
・S Size（Finished Wire Ø：1.05-1.5mm）
└"WS7165-1563HX-SB" - for AVSSB/AVSSC0.3 wires.
・M Size（Finished Wire Ø：1.35-1.9mm）
└"WS7165-1564HX-LGRE" - for AVSS/AVSSB0.5 wires.
・L Size（Finished Wire Ø：1.75-2.4mm）
└"WS7165-1565HX-BL" - for AVS0.5 wires.

◆Recommended Crimping Tool
"P-706" "PAD-11"
Crimping guideline (for AVSSB0.3 wire):
P-706：for the conductor 1.7
PAD-11：for the conductor 1.6
*These values are provided as guidelines only.
Actual crimping results may vary depending on the wire type.
