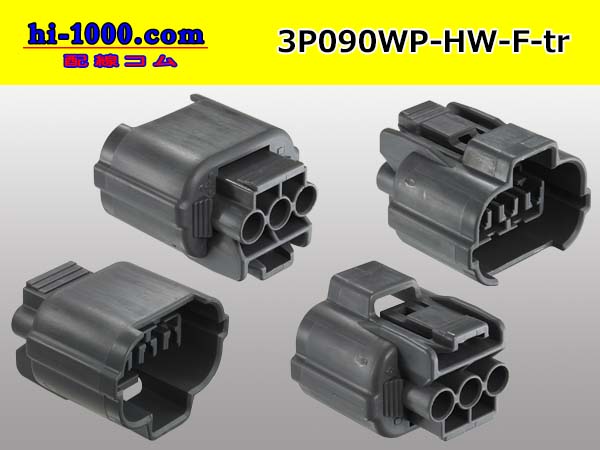

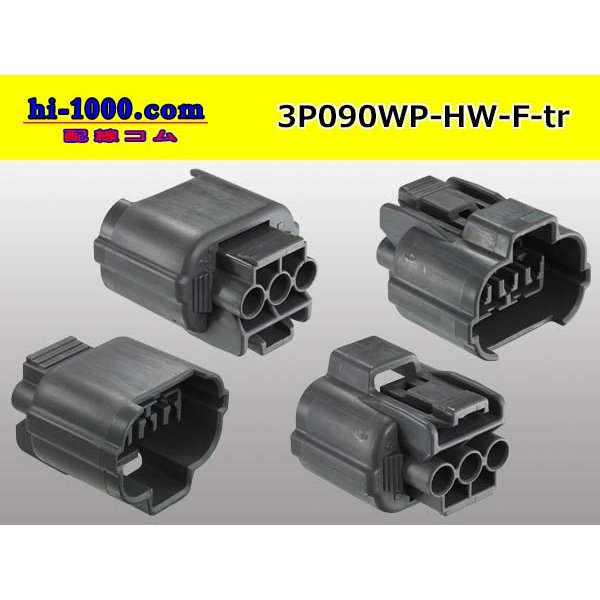

●[sumitomo] 090 type HW waterproofing series 3 pole(one line of side)F connector [gray](no terminals)/3P090WP-HW-F-tr [3P090WP-HW-F-tr]

●[sumitomo] 090 type HW waterproofing series 3 pole(one line of side)F connector [gray](no terminals)/3P090WP-HW-F-tr [3P090WP-HW-F-tr]

Price: US$4.38

Weight: 15g

Stock:94
Quantity:

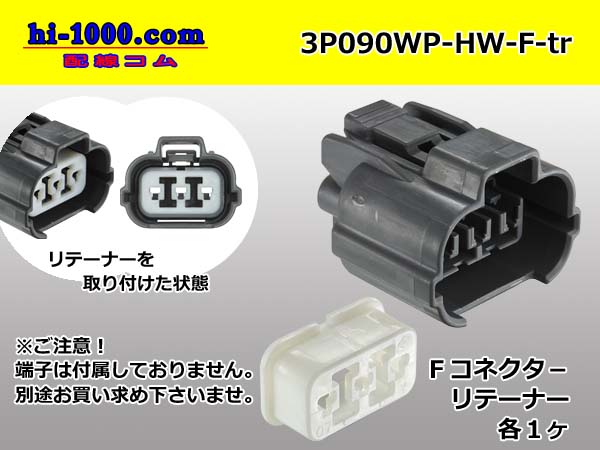

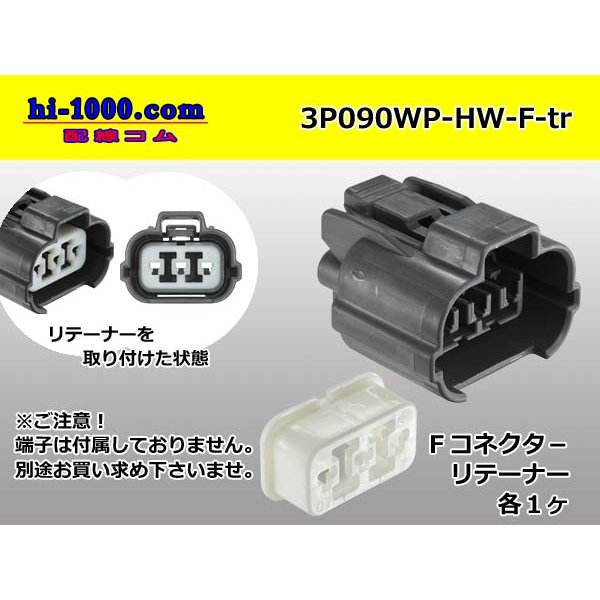

This product is F side connector and retainer.
Please buy the F terminal, the wire seal and dummy plug are separately.
In addition, the M side connector is not included, too.
please buy it separately.


Brand: Sumitomo Wiring Systems
Series:HW waterproofing series

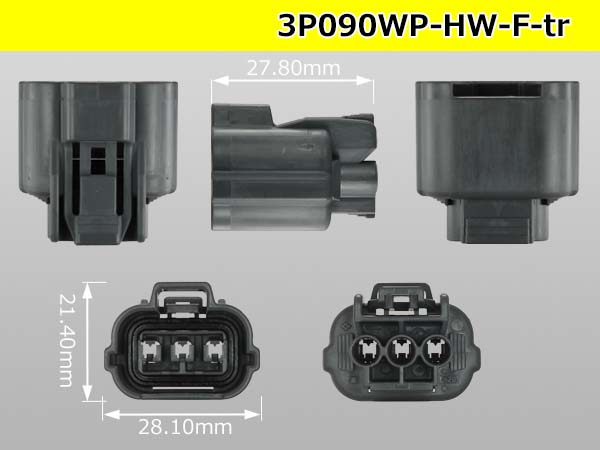

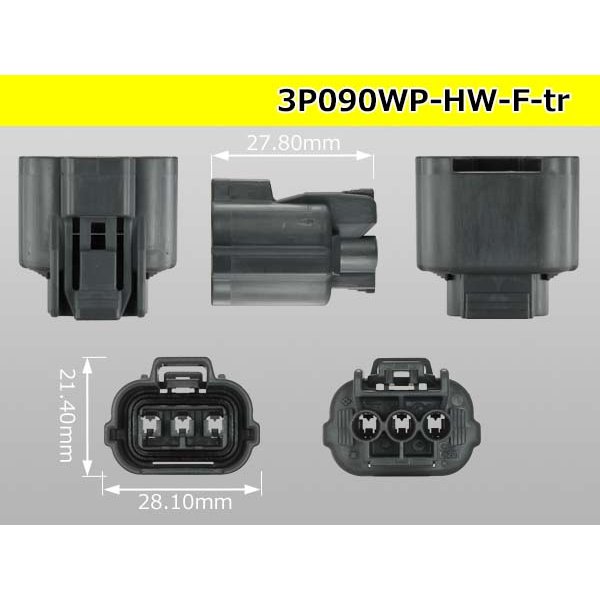

Standard size:090
Hue:Gray
Gender:Female
Number of Positions:Waterproofing 3 Position
Terminal:selling separately


Corresponding terminals separately prepare it as follows.
Please find necessary amount.
In addition, it is available as a spare for the repair.



◆M side connector(No terminals)
"3P090WP-HW-M-tr"


■F terminal + wire seal
"F090WP-HW"
(for AVSSB0.5/AVS0.5-0.75)

■F terminal individually
"F090WP-HM-HW-MT-wr"

■Wire seal(S type/blue)
"WS7165-0118HW"
(electric wire 1.7-2.4mm outside diameter)

If you use "AVSS/AVS1.25mm2" wire, please select this Please purchase a combination of "brown" wire seals and individual terminals.
■Wire seal(M type/brown)
"WS7165-0118HW"
(electric wire 2.1-2.9mm outside diameter)

■Dummy plug
"7161-9787HW"
Please use without terminals.



After inserting the terminals into the connector, insert the supplied retainer and Insert the supplied retainer and lock it in place.
