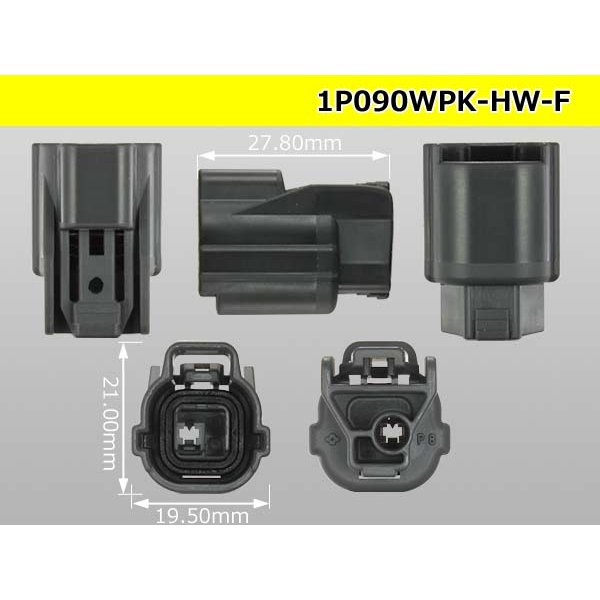

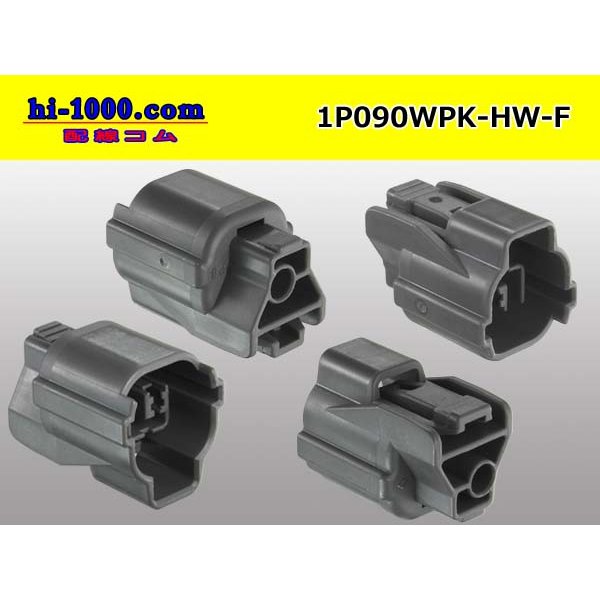

●[sumitomo] 090 type HW waterproofing series 1 pole F connector [gray]（no terminals）/1P090WP-HW-F-tr [1P090WP-HW-F-tr]

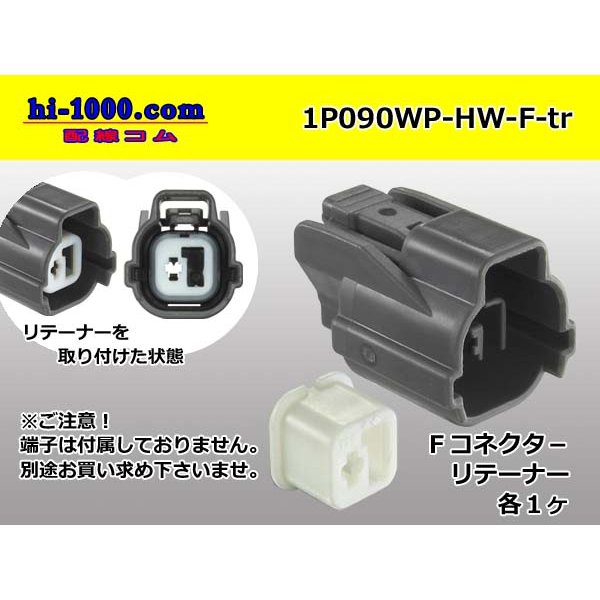

As for this product, Retainer is attached to the connector on the F side.
A terminal, the wire seal prepare by other selling separately.
Please find for necessary number, and please be careful as the M side of the counterpart is still sold separately.

Corresponding terminals separately prepare it as follows.
Please find necessary amount.
In addition, it is available as a spare for the repair.

In the case of use, it becomes this by an electric wire of AVSSB0.5/AVS0.5-0.75.
■F terminal + wire seal (small size) blue
"F090WP-HW"

■F terminal simple substance
"F090WP-HM-HW-MT-wr"
(0.3-1.25mm2)
■Wire seal (S type) blue
"WS7165-0118HW"
(electric wire 1.7-2.4mm outside diameter)

In the case of use, please choose a wire seal and the terminal simple substance of this "brown" by an electric wire of AVSS/AVS1.25mm2
■A wire seal (M type) is brown
"WS7165-0119HX/HW/DL"
(electric wire 2.1-2.9mm outside diameter)

■Dummy stopper
"7161-9787HW"
It is necessary for the point that does not use the terminal.

A fitting counterpart is this
◆"1P090WP-HW-M-tr"

After inserting a terminal in A connector, you come in, and please lock attached Retainer .
