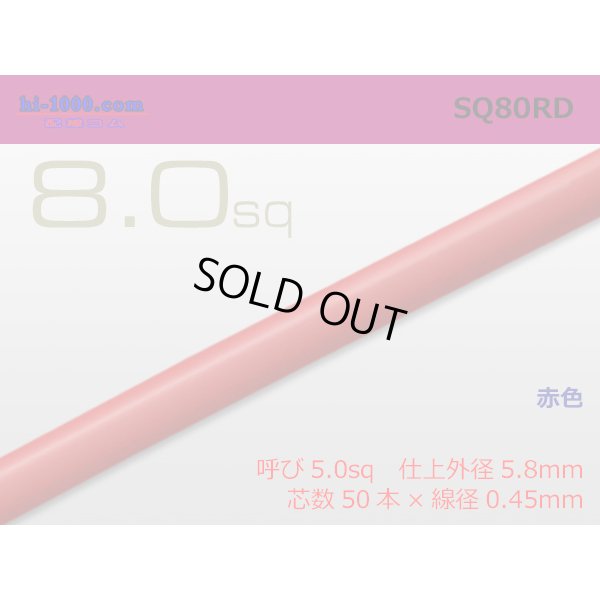

●8.0sq cable (1m) [color Red] /SQ80RD [SQ80RD]

A price is a price around 1m.
An example: When 10 meters are necessary, please input with "10" to the number of the purchase.
I send it in "a connected state" to the purchase amount.
But the upper limit becomes number of the stock or 25m as 1 reel becomes 25m.
Use The fancy goods are used for wiring of various low voltage in the car, and the cotton and hemp fabrics are mainly used for battery.

Characteristic I am superior in oil-resistant, cold-proof, wear resistance to endure the use by car. JIS C3406 conformity

Series Vinyl low pressure electric wire AV for the car
Standard size 8.0
Number of the wires/wire diameter (this /mm) 50/0.45
Official name cross section (mm2) 8.0
Conductor outer diameter (mm) 3.7
Insulator thickness (mm) 1.0
Finish outer diameter (mm) 5.8

Current tolerance in case of 8.0
Ambient temperature (℃) 30 40 50 60 70
Current tolerance (A) 74 66 57 47 33
Heat-resistant class 80 degrees Celsius

※The current tolerance is the electric current that conductor saturation temperature becomes the heat-resistant temperature under each ambient temperature.
