●[SWS] pole Thin coating heat resistance Electric cable AESSX0.75f 100m spool Winding [color Black] /AESSX075f-100-BK [AESSX075f-100-BK]

●[SWS] pole Thin coating heat resistance Electric cable AESSX0.75f 100m spool Winding [color Black] /AESSX075f-100-BK [AESSX075f-100-BK]

Price: US$192.53

Weight: 1027g

Sold out
A price is a price of 1 reel (100m).

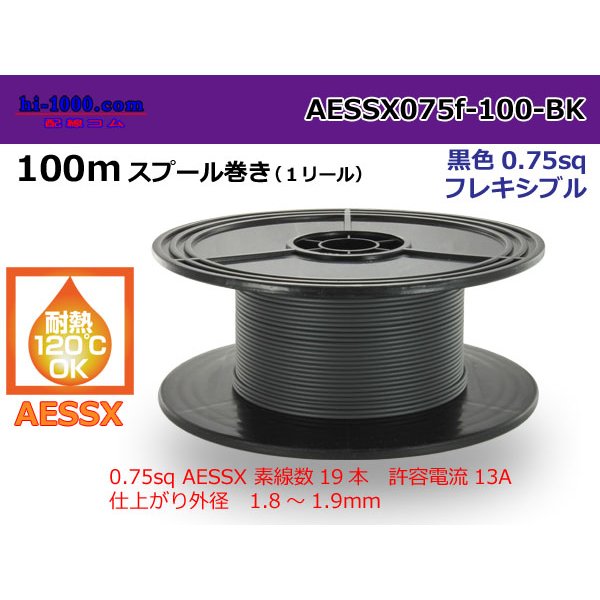

I send it in the state that I bound a spool with like an image.
Use In (four of them, two) automotive low-pressure conductive trace, I can use heat-resistant (120 degrees Celsius) for the required part.
Characteristic AESSX is the electric wire which thinned an insulator of AEX.

Maker Sumitomo Wiring Systems
Series Pole escalope form crosslinked polyethylene insulation heat resistance low pressure electric wire for the AESSX car
Standard size 0.75 (f)

Number of the wires/wire diameter (this /mm) 19/0.23
Conductor calculation cross section (mm2) 0.7894
Conductor outer diameter (mm) 1.2
Insulator thickness (mm) 0.3
Finish outer diameter (mm) 1.8-1.9

Current tolerance in case of 0.75 (f)
Ambient temperature (℃) 20 30 40 50 60 70 80 90 100 110
Current tolerance (A) 21 20 19 17 16 15 13 11 9 6
Heat-resistant class 80 degrees Celsius

※The heat-resistant class is conductor best allowable temperature when 10,000 hours were used as an indication at accumulation electricity time.
※The current tolerance is the electric current that conductor saturation temperature becomes the heat-resistant temperature under each ambient temperature.
