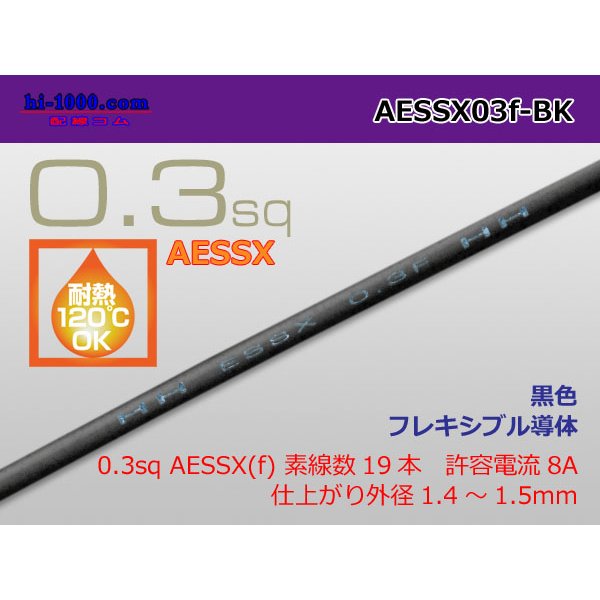

●[Yazaki] Heat resistant low voltage electric wire AESSX0.3sq(1m) [color Black] /AESSX03f-BK [AESSX03f-BK]

●[Yazaki] Heat resistant low voltage electric wire AESSX0.3sq(1m) [color Black] /AESSX03f-BK [AESSX03f-BK]

Price: US$1.20

Weight: 5g

Stock:1,284
Quantity:
A price is a price around 1m.
An example: When 10 meters are necessary, please input with "10" to the number of the purchase.
I send it in "a connected state" to the purchase amount.
But the upper limit becomes number of the stock or 2,000m as 1 reel becomes 2,000m.

Use In (four of them, two) automotive low-pressure conductive trace, I can use heat-resistant (120 degrees Celsius) for the required part.
Characteristic The heat-resistant PE insulation electric wire which gave electron beam irradiation bridging in AVSS and monomorphism.

Maker Yazaki Corporation
Series Pole escalope type crosslinked polyethylene insulation heat resistance low pressure electric wire for the car
Standard size 0.3(f)

Number of the wires/wire diameter (this /mm) 19/0.16
Conductor calculation cross section (mm2) 0.3812
Conductor outer diameter (mm) 0.8
Insulator thickness (mm) 0.3
Finish outer diameter (mm) 1.4
Current tolerance level (A) 8

※The current tolerance is conductor best allowable temperature 120 degrees Celsius, a calculated value in case of ambient temperature 80 degrees Celsius.
