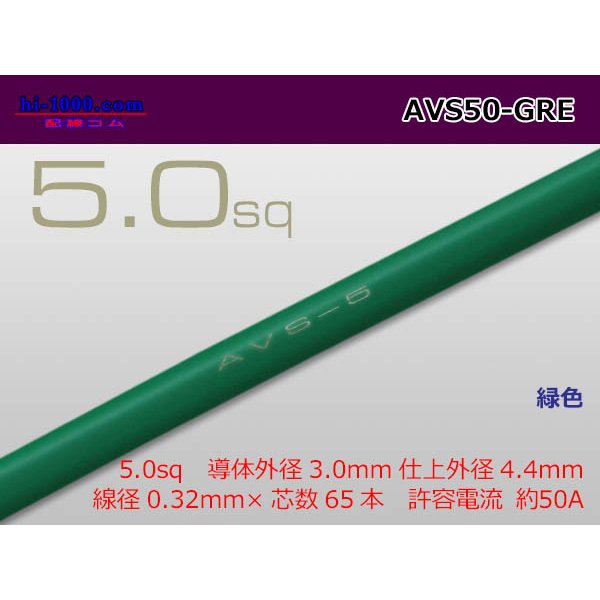

●[Yazaki] AVS5.0sq- [color Green] (1m)/AVS50-GRE [AVS50-GRE]

●[Yazaki] AVS5.0sq- [color Green] (1m)/AVS50-GRE [AVS50-GRE]

Price: US$5.49

Weight: 60g

Stock:142
Quantity:
A price is a price around 1m.
An example: When 10 meters are necessary, please input with "10" to the number of the purchase.
I send it in "a connected state" to the purchase amount.
But the upper limit becomes the number of the stock.

Characteristic An escalope electric wire of insulator thickness 0.5mm. A JASO D611 conformity product.

Maker Yazaki Corporation
Series Escalope type low pressure electric wire for the AVS car
Standard size 5.0


The number of the wires (book) 65
Conductor calculation cross section (mm2) 5.228
Conductor outer diameter (mm) 3.0
Insulator thickness (mm) 0.7
Finish outer diameter (mm) 4.4
Current tolerance (A) 50

※The current tolerance by JASO D609 (conductor best allowable temperature 80 degrees Celsius, ambient temperature 40 degrees Celsius)
