●[SWS]AVS2.0f spool 30m roll [color Red]/AVS20F-30-RD [AVS20F-30-RD]

●[SWS]AVS2.0f spool 30m roll [color Red]/AVS20F-30-RD [AVS20F-30-RD]

Price: US$89.44

Weight: 762g

Low stock
Quantity:
A price is a price of 1 reel (30m).

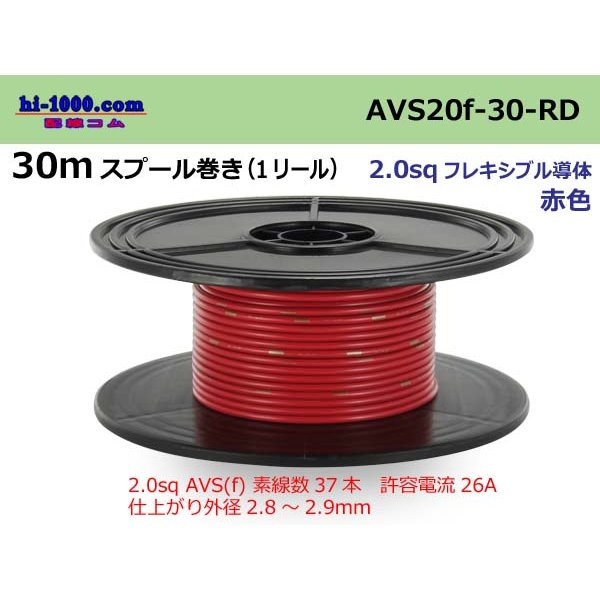

I send it in the state that I bound a spool with like an image.

Use I use it in (four of them, two) automotive low-pressure conductive trace.
Characteristic CPAVS is Sumitomo name of AVS(f).
It is the electric wire which is superior to AVS in flexibility.
JASO D611 conformity
Heat-resistant class 80 degrees Celsius

Maker Sumitomo Wiring Systems
Series Escalope low pressure electric wire (escalope electric wire type 1) for the CPAVS car
Standard size 2.0 (f)

Number of the wires/wire diameter (this /mm) 37/0.26
Conductor calculation cross section (mm2) 1.964
Conductor outer diameter (mm) 1.8
Insulator thickness (mm) 0.5
Finish outer diameter (mm) 2.8-2.9

Current tolerance in case of 2.0 (f)
Ambient temperature (℃) 20 30 40 50 60 70
Current tolerance (A) 32 29 26 23 18 13

※The current tolerance is the electric current that conductor saturation temperature becomes the heat-resistant temperature under each ambient temperature.
※The current tolerance in the image is notation in case of ambient temperature 40 degrees.
