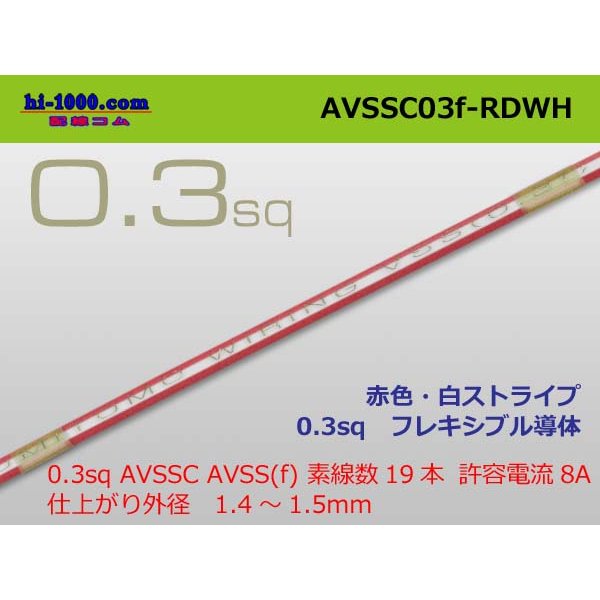

●[SWS] AVSSC0.3f (1m)　 [color Red & white stripes] /AVSSC03f-RDWH [AVSSC03f-RDWH]

A price is a price around 1m.
I send it in "a connected state" to the purchase amount.
But the upper limit becomes number of the stock or 100m as 1 reel becomes 100m.
Use I use it in the low-pressure conductive trace of automotive (four-wheeled mainly)
Characteristic AVSSC is Sumitomo name of AVSS(f).
Heat-resistant class 80 degrees Celsius

Maker Sumitomo Wiring Systems
Series Escalope low pressure electric wire (escalope electric wire type 2) for the AVSSC(f-type) car
Standard size 0.3(f) flexible constitution

Number of the wires/wire diameter (this /mm) 19/0.16
Conductor calculation cross section (mm2) 0.3821
Conductor outer diameter (mm) 0.8
nonconductor(mm) 0.3
Finish outer diameter(mm) 1.4-1.5

※The current tolerance in the image is notation in case of ambient temperature 40 degrees.
