■[Tyco-Electronics] 020 Type 0.50 series F Terminal /F020-TE-03505
[F020-TE-03505]
Price: US$0.27
Weight: 1g
Stock:30,326

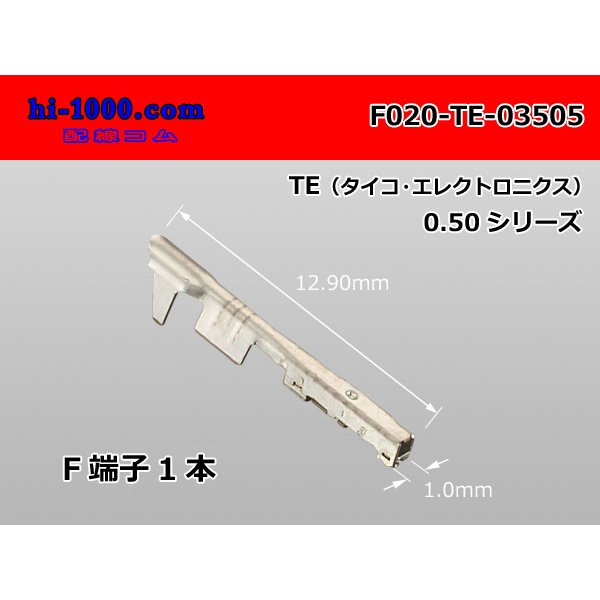

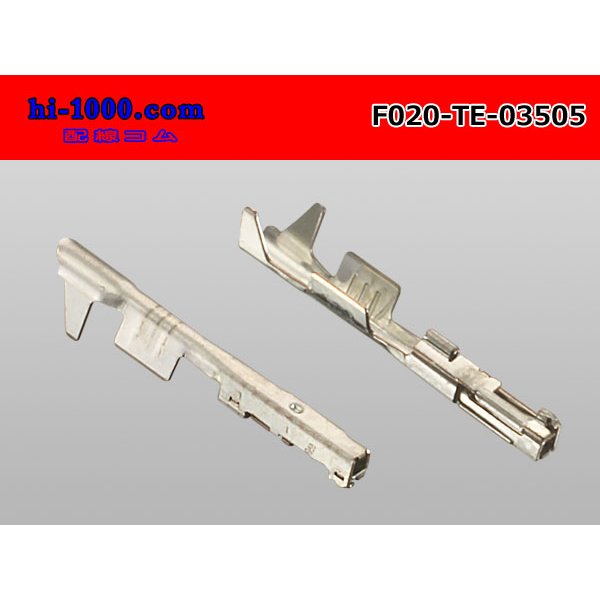

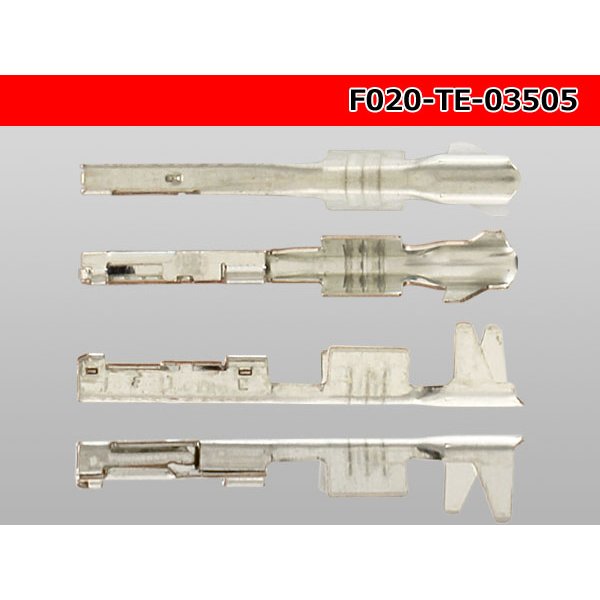

This product is TE Connectivity(AMP) 020 type 0.5 series the F side terminal.
Price is for 1 terminal.
[ commodity details ]
Brand： TE Connectivity(AMP)
Series：0.5 series
Tab Size：020
Gender：Female
material：Brass
Surface treatment：Tin-plated
Applicable wire size：＊0.35-0.5mm2
Cable overall diameter：1.1-1.4mm
0.5mm2 is also an applicable wire size, but we recommend a wire with thin insulation or AVSS0.3.
*Even if the wire to be used is within the "Cable overall diameter" range,
it may be difficult to insert the wire depending on the connector to be used.
In such cases, use pliers or the like to reduce the transverse width of the coated portion after caulking.

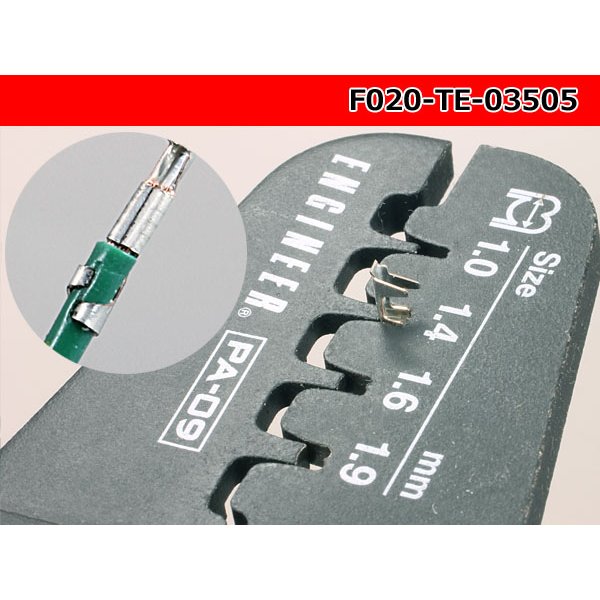

◆Recommended Crimp Tool
"PA-09"
Yardstick for crimping
conductors portion：1.4 / coated portion：1.6（for AVSS0.3）
＊It's just a reference range.
Price is for 1 terminal.
[ commodity details ]
Brand： TE Connectivity(AMP)
Series：0.5 series
Tab Size：020
Gender：Female
material：Brass
Surface treatment：Tin-plated
Applicable wire size：＊0.35-0.5mm2
Cable overall diameter：1.1-1.4mm
0.5mm2 is also an applicable wire size, but we recommend a wire with thin insulation or AVSS0.3.
*Even if the wire to be used is within the "Cable overall diameter" range,
it may be difficult to insert the wire depending on the connector to be used.
In such cases, use pliers or the like to reduce the transverse width of the coated portion after caulking.
◆Recommended Crimp Tool
"PA-09"
Yardstick for crimping
conductors portion：1.4 / coated portion：1.6（for AVSS0.3）
＊It's just a reference range.
