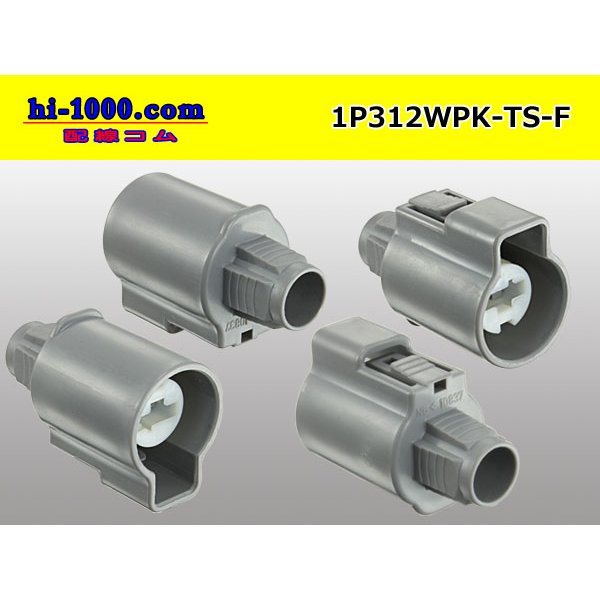

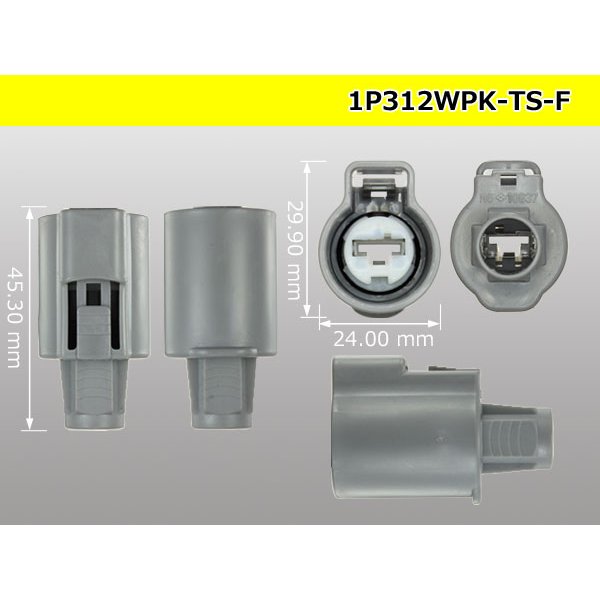

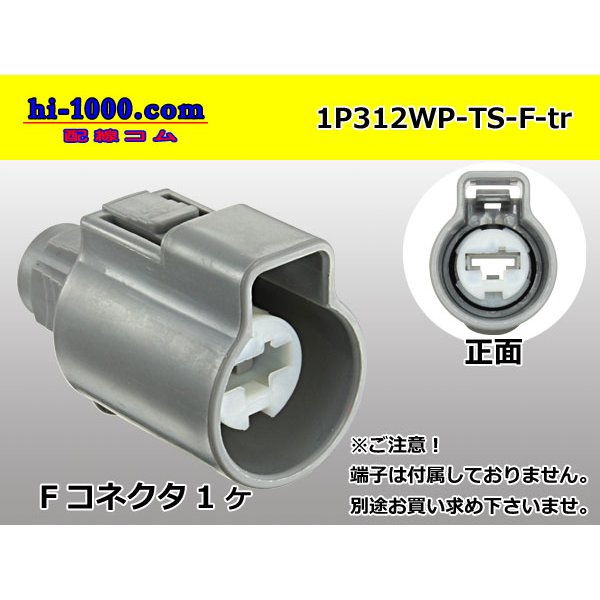

●[sumitomo] 312 type TS waterproofing series 1 pole F connector (no terminals) /1P312WP-TS-F-tr [1P312WP-TS-F-tr]

●[sumitomo] 312 type TS waterproofing series 1 pole F connector (no terminals) /1P312WP-TS-F-tr [1P312WP-TS-F-tr]

Price: US$4.43

Weight: 15g

Stock:159
Quantity:
This product is F side connector and Retainer. Please buy M terminal, the wire seal separately.
In addition, the M side of the counterpart is not included, too; please buy it separately.
Toyota pure article number 90980-10837 equivalency product

The corresponding terminal separately prepares it as follows.
Please find necessary amount.
In addition, it is available as a spare for the repair.

■F terminal + wire seal
“F312WP-TS-3.0"
*It supports an electric wire of AV/AVS3.0mm2.

■F terminal simple substance “F312WP-TS-3.0-wr"
Adaptation electric wire size 3.0㎟
Electric wire finish 2.6-4.1mm outside diameter
■Wire seal 312 type TS waterproofing series
"WS7165-0400-TS-SGR"
■Dummy stopper
"DP7165-0180-BK"
I use it for the part without the terminal.

A fitting counterpart is this
◆”1P312WP-TS-M-tr"
